F&W Self-Priming High-Volume Lawn Sprinkler Pump , 1.5HP, 1PH, 115/230V, Model SPJ15P1

Additional information

AC/DC Pumps

Category AC Pumps

Residential Pumps, Sprinkler Pumps

Brand

Flint & Walling

AC Voltage

110-115 volts, 208-230 volts

Horsepower

1.5

Phase

Single Phase

Surface/Submersible

Surface

Suction Port

Discharge Port

1 1/2"

Description

High capacity, high volume
Cast iron pump body and mounting ring for long life
Flint & Walling’s Service Plus NEMA J, capacitor start, double ball bearing motors for continuous operation
Easy access drain plug
Rapid self-priming characteristics under maximum suction conditions

Model Number	HP	Suction Lift Ft.	Discharge Pressure PSI								Shut-Off Pressure PSI	Suction Pipe Tap	Disch. Pipe Tap
Model Number			10	15	20	25	30	35	40	45
1 Phase			Capacity – U.S. Gallons per Minute
SPJ15P1	1.5	5	78	77	74	70	62	53	43	30	47	2″	1-1/2″
		15	70	68	66	62	53	43	30		41
		25	47	46	45	44	42	34			36

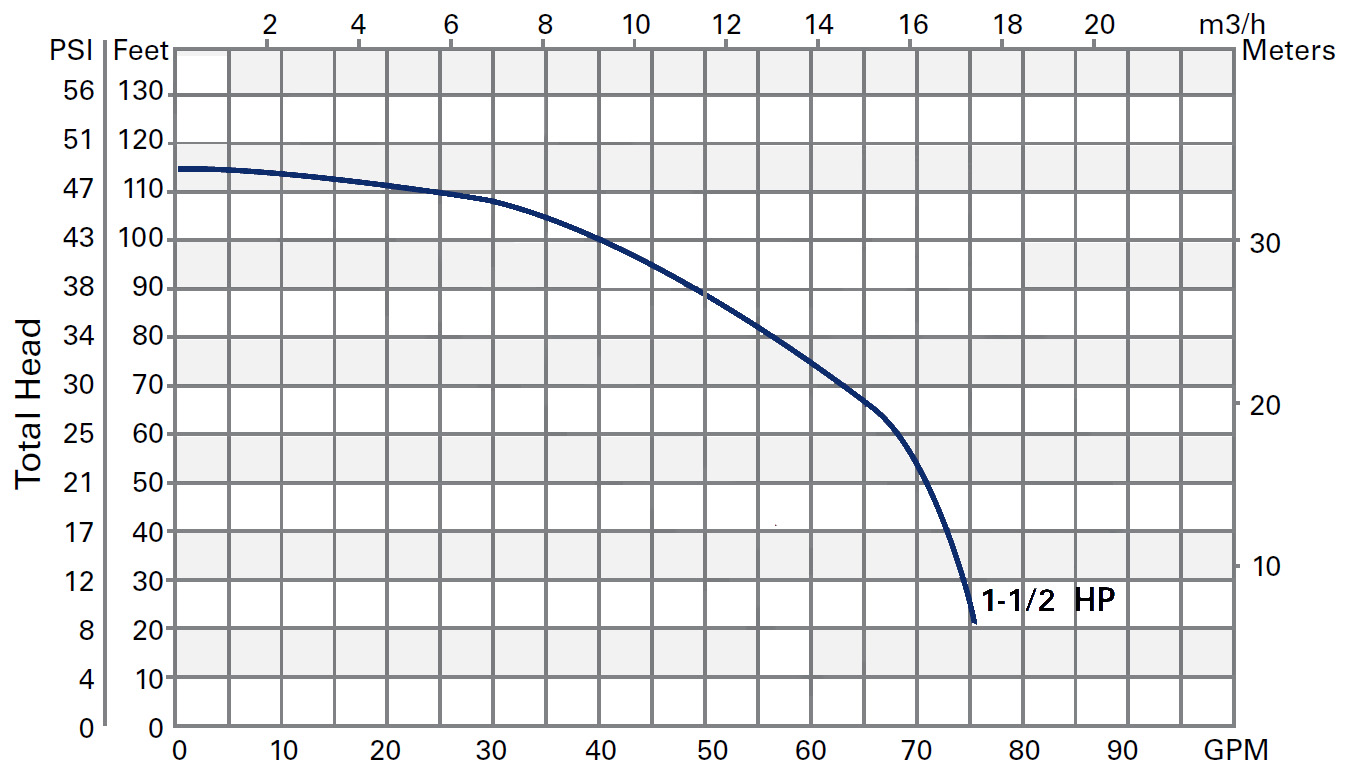

Performance Curve

Specifications

HP	Type	Volts	Hz	RPM	Motor Voltage (Factory) Connected	Service Factor Motor		Max Liquid Temp	Max Suction Lift
						Single Phase
						115V	230V
1.5	Single Ph	115/230	60	3450	230V	21.0	10.5	180 °F	25 FT

AC/DC Pumps	AC
Category AC Pumps	Residential Pumps, Sprinkler Pumps
Brand	Flint & Walling
AC Voltage	110-115 volts, 208-230 volts
Horsepower	1.5
Phase	Single Phase
Surface/Submersible	Surface
Suction Port	2"
Discharge Port	1 1/2"
