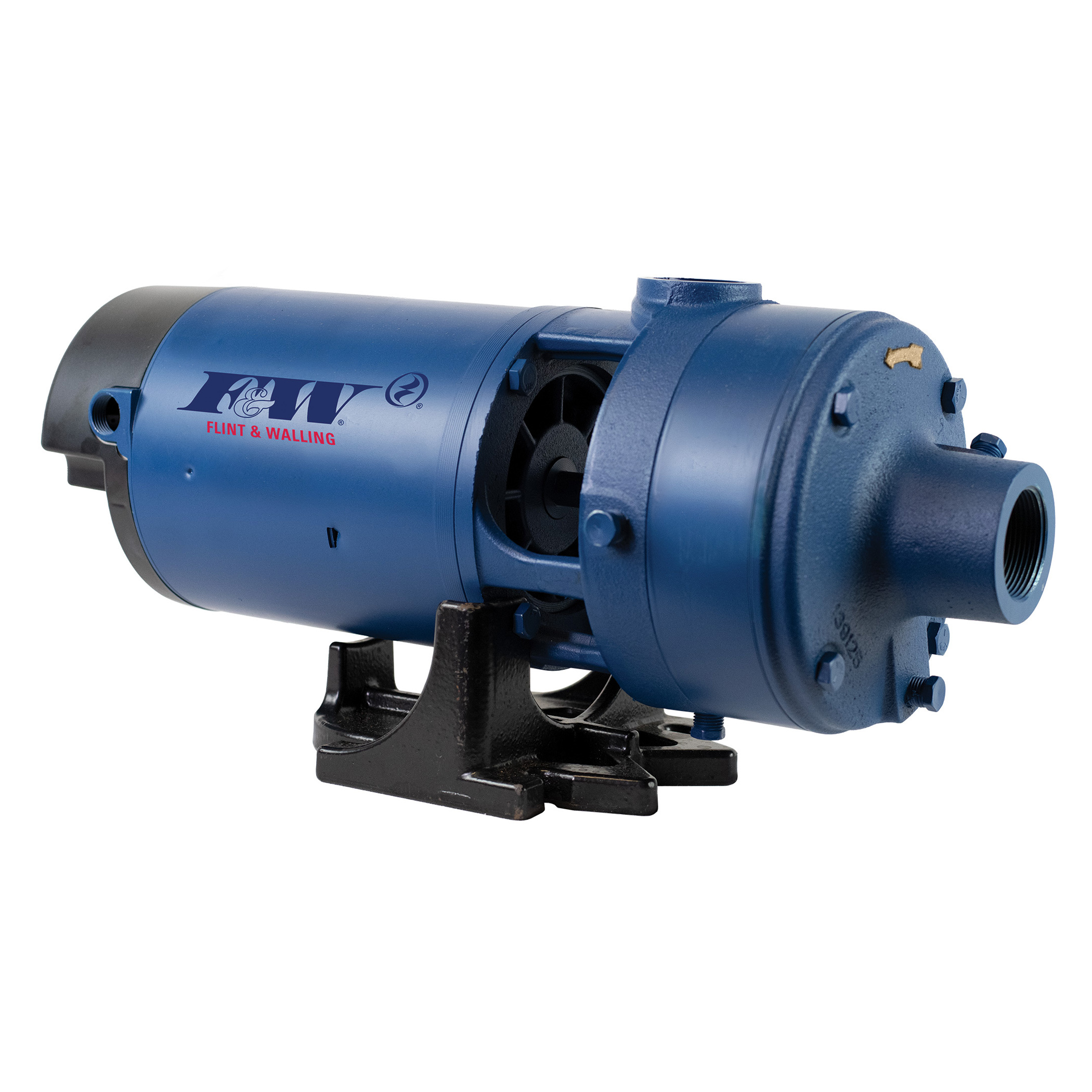

F&W Self-Priming Lawn Sprinkler Pump , 2HP, 3PH, 230/460V, Model CJ101B203AB

Additional information

AC/DC Pumps

Category AC Pumps

Centrifugal Pumps, Horizontal Multistage Pumps, Irrigation Pumps

Brand

Flint & Walling

AC Voltage

208-230 volts, 440-480 volts

Horsepower

Phase

Three Phase

Surface/Submersible

Surface

Suction Port

1 1/2"

Discharge Port

1 1/4"

Description

Product Details

Our CJ101 Multistage Centrifugal Pump is a non-self-priming solution designed for various applications. With capacities reaching up to 3,400 GPH (12,870 LPH) and pressures up to 90 PSI (620.5 kPa), this multi-stage pump is specifically engineered for high head applications.

Features and Benefits

Suction lift to 25′ (8 m)
Inlet: 1 1/2″
Outlet: 1 1/4″
Low-lead brass or thermoplastic impellers
1 year limited warranty

TRAINING

Non self-priming
Capacities to 3,400 GPH (12,870 LPH)
Pressures to 90 PSI (620.5 kPa)
Multi-stage for high head

Pump Performance

CJ101 SERIES CENTRIFUGAL PUMPS, LOW LEAD BRASS IMPELLERS
3 PHASE	LESS MOTOR	HP	STAGES	LIFT FT.	Discharge Pressure PSI									MAX. PRESS. PSI	*MAX. CASE PRESS	*MAX. LIQUID TEMP.
					10	20	30	40	50	60	70	80	90
					CAPACITY U.S. GPM
CJ101B203AB	CJ101B2010AB	2	2	5	56	52	47	41	34	24				70	160 psig	200°F
				15	50	49	45	39	31	19
				25	37	36	35	34	27

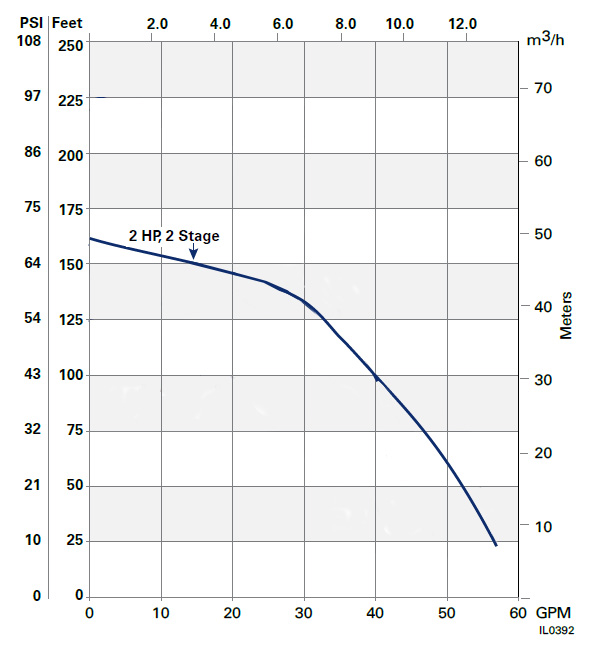

Performance Curve

Additional information

AC/DC Pumps	AC
Category AC Pumps	Centrifugal Pumps, Horizontal Multistage Pumps, Irrigation Pumps
Brand	Flint & Walling
AC Voltage	208-230 volts, 440-480 volts
Horsepower	2
Phase	Three Phase
Surface/Submersible	Surface
Suction Port	1 1/2"
Discharge Port	1 1/4"
