SAER 6BP5/110 Threaded Centrifugal Water Pump – 10020 GPH – 2HP – 1PH – 220V

5/5

SAER 6BP5/110 Threaded Centrifugal Water Pump – 10020 GPH – 2HP – 1PH – 220V

Additional information

Weight 44 lbs
Dimensions 12.4 × 9.8 × 7.1 in
AC/DC Pumps

AC

Horsepower

2

Phase

Single Phase

Voltage

220 volt

Self-Priming

Non Self-Priming

Brand

Saer

AC Voltage

208-220 volts

Category AC Pumps

Centrifugal Pumps, Garden Pumps, Irrigation Pumps, Residential Pumps, Sprinkler Pumps

$689.99

This SAER®-USA 6BP5 Heavy Duty Threaded Centrifugal Water Pump is used in surface and overhead irrigation systems, for taking water from lakes, rivers, tanks, and many other industrial uses.

  • High flow heavy duty centrifugal pump
  • 2″ NPT threaded suction and discharge
  • Cast iron body for rugged durability



Estimated Delivery: 3 – 5 Business Days

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Applications

The electric pump 6BP series can be used for surface flooding and spray irrigation systems, lifting water from lakes, rivers and tanks, and for various industrial applications.

Features

  • NPT Threaded suction and discharge for a quick, easy connection
  • Closed impeller obtains best efficiency levels
  • Totally enclosed motor
  • Stainless steel shaft provides strength and resistance to corrosion
  • Greased pre-lubricated ball bearings
  • Cast iron body for rugged durability
  • Graphite/ceramic mechanical seal for wear resistance
  • Protection IP44

Pump Construction

Pump body and motor support in cast iron. Wide range of available material for the impellers: cast iron. Mechanical seal in graphite/ceramic, totally enclosed motor with external ventilation, rotor mounted on maintenance-free ball bearings. The pumps can be supplied with a built-in thermal overload protection on request. The capacitor is permanently in circuit in the single-phase version.

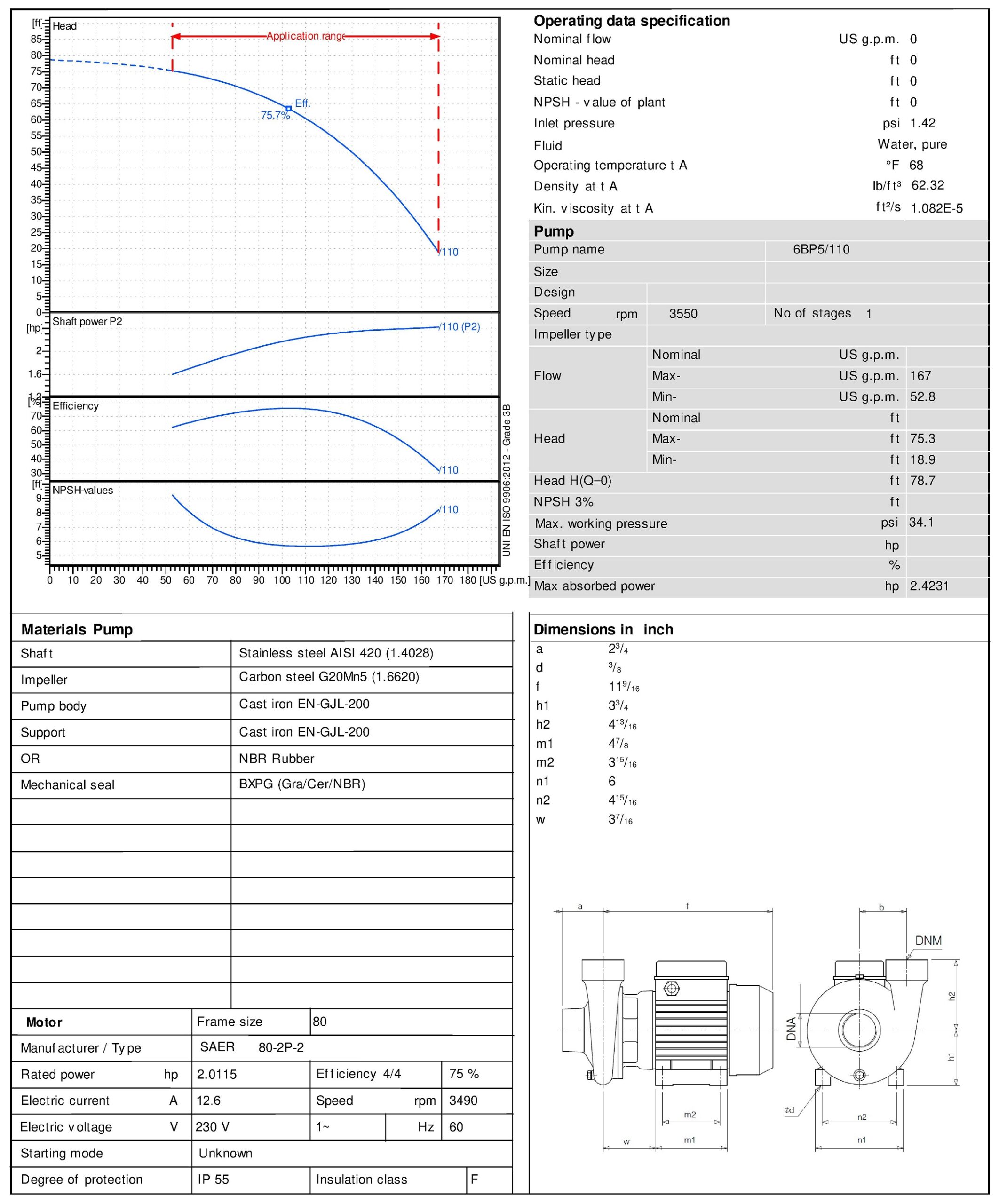

Pump Performance Data

  • Temperature of pumped liquid: 5°F to 158°F
  • Maximum working pressure: 87 psi
  • Maximum ambient temperature: 104°F

The performance data shown is based on continuous service for clear water (specific weight 62.5 lb/ft³) with a maximum manometric suction lift of 5 feet w.c. For higher manometric lifts, up to a maximum of 16 ft, pump capacities are reduced. The suction pipe must be perfectly airtight to ensure the performance data shown.

Installation

The series BP electric pumps can be installed with the motor shaft mounted either horizontally or vertically. In the event of vertical installations, the motor must always be positioned above the pump body.

Advantages

  • Gas threaded Suction and discharge (NPT on request) for a quick and easy connection.
  • Grey cast iron pump body designed with suitable thickness to guarantee greater resistance and life to the working pressure.
  • Closed impeller to obtain the best efficiency levels and reduce pump NPSHr.
  • Different configurations of mechanical seal according to chemical compatibility with pumped fluid.
  • Stainless steel shaft with cross section increased to resist generated loads.
  • Wide availability of electric motors with special voltage on request.
  • High reliability for heavy duty in agriculture and industrial applications.
  • Grease prelubricated ball bearings oversized and protected from outer agents to provide low noise operation without need for maintenance.

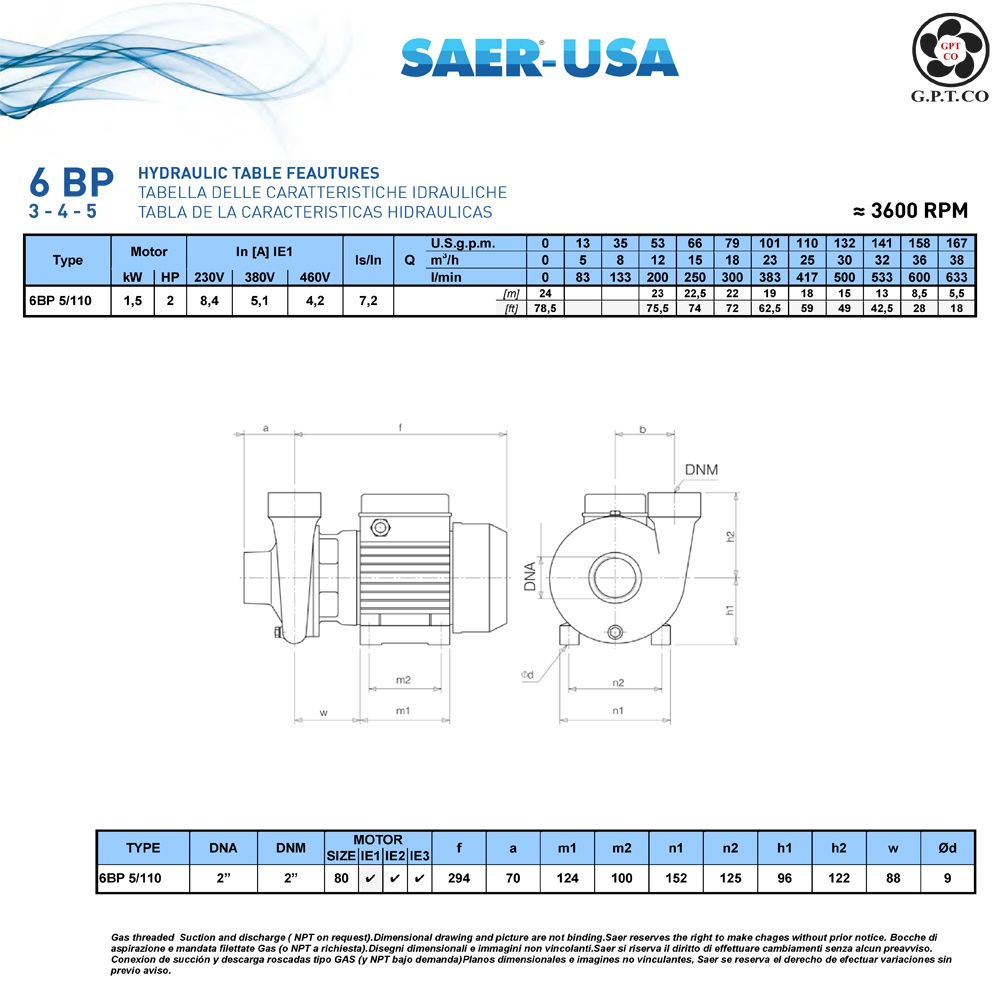

Technical Specifications

Model 6BP5/110
Brand SAER-USA
Manufacturer’s Warranty 1 year Limited Warranty
Ship Weight 44lbs
Port Size (in.) 2″
Flow (GPH) 10020 GPH
HP 2HP
Volts 220V – Single Phase
Amps 12.6
Max. Total Head (ft.) 78.5ft
Max. Suction Lift (ft.) 17ft
Max. PSI 34.8
Suction Port (in.) 2″
Discharge Port (in.) 2″
Self-Priming No
Dimensions L x W x H (in.) 12.4″ x 9.8″ x 7.1″
Product Weight (lbs.) 44 lbs

Downloadable Information

User Manual

Parts

Technical Specifications
