F&W Self-Priming Lawn Sprinkler Pump , 1.0HP, 1 PH, 115/230V, Model SPJ10P1
5/5
F&W Self-Priming Lawn Sprinkler Pump , 1.0HP, 1 PH, 115/230V, Model SPJ10P1
Free Shipping
Additional information
| AC/DC Pumps | AC |
|---|---|
| Category AC Pumps | Residential Pumps, Sprinkler Pumps |
| AC Voltage | 115/230 volts |
| Horsepower | 1 |
| Phase | Single Phase |
| Surface/Subersible | Surface |
| Brand | Flint & Walling |
Unit Price
$1,442.99
Pressure Booster Pumps
Designed for lawn sprinkling, irrigation, and water transfer, our SP Self-Priming Sprinkler Pump offers a peace of mind and assurance of quality for your lawn irrigation needs.
For all products over 120 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 120 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
Description
- High capacity, high volume
- Cast iron pump body and mounting ring for long life
- Flint & Walling’s Service Plus NEMA J, capacitor start, double ball bearing motors for continuous operation
- Easy access drain plug
- Rapid self-priming characteristics under maximum suction conditions
Performance Chart
|
Model Number |
HP |
Suction Lift Ft. |
Discharge Pressure PSI |
Shut-Off Pressure PSI |
Suction Pipe Tap |
Disch. Pipe Tap |
|||||||
|
10 |
15 | 20 | 25 | 30 | 35 | 40 |
45 |
||||||
|
1 Phase |
Capacity – U.S. Gallons per Minute |
||||||||||||
|
SPJ10P1 |
1 | 5 | 58 | 53 | 48 | 43 | 38 | 32 | 23 | 11 | 48 | 2″ | 1-1/2″ |
| 15 | 53 | 48 | 45 | 37 | 31 | 24 | 12 | 43 | |||||
| 25 | 48 | 44 | 38 | 33 | 25 | 14 | 39 | ||||||

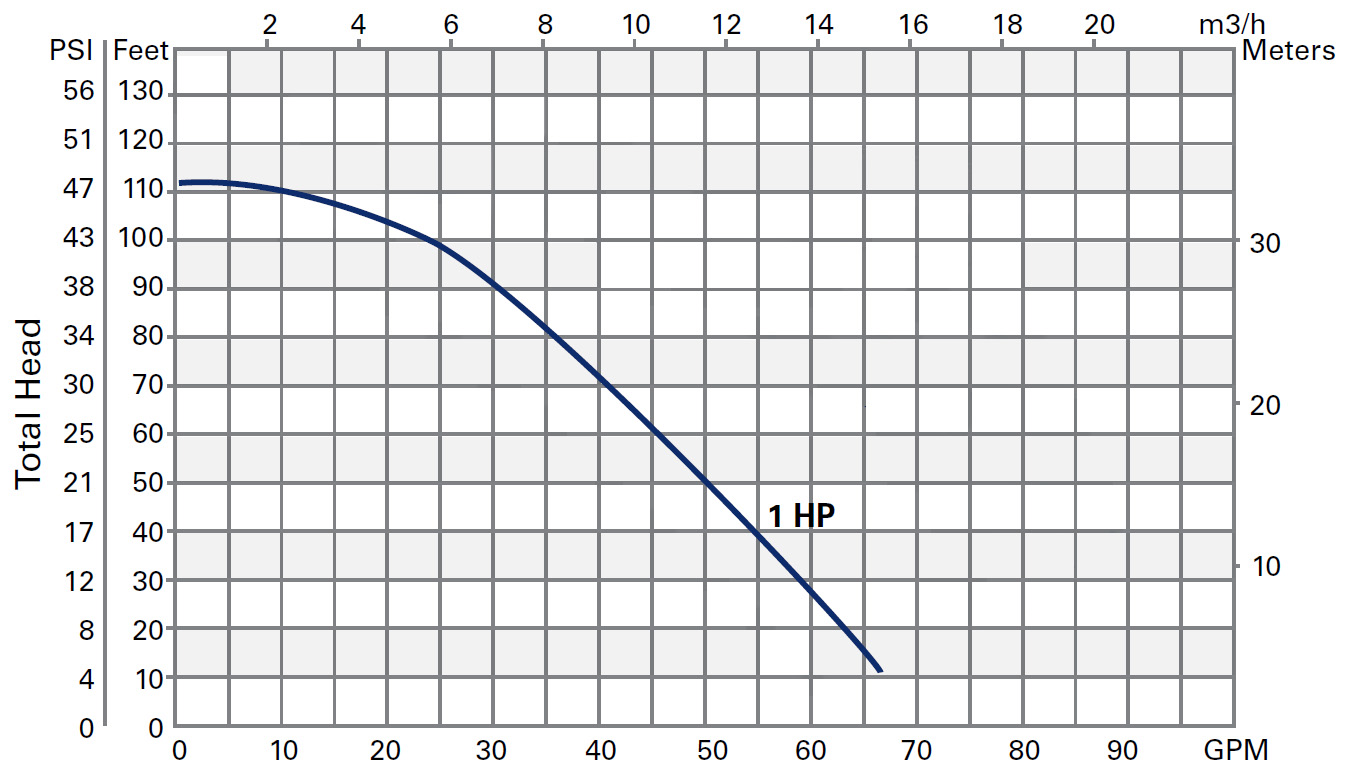

Performance Curve
Specifications
| HP | Type | Volts | Hz | RPM | Motor Voltage (Factory) Connected | Service Factor Motor | Max Liquid Temp | Max Suction Lift | |
| Single Phase | |||||||||
| 115V | 230V | ||||||||
| 1 | Single Ph | 115/230 | 60 | 3450 | 230V | 18.0 | 9.0 | 180 °F | 25 FT |
Additional information
| AC/DC Pumps | AC |
|---|---|
| Category AC Pumps | Residential Pumps, Sprinkler Pumps |
| AC Voltage | 115/230 volts |
| Horsepower | 1 |
| Phase | Single Phase |
| Surface/Subersible | Surface |
| Brand | Flint & Walling |
