Gol Pumps 2″ Thin Submersible Pump – 123 Ft – 312GPH – 3 Wire – 1/4HP

5/5

Write a Review

Gol Pumps 2″ Thin Submersible Pump – 123 Ft – 312GPH – 3 Wire – 1/4HP

Thin Submersible Pump
Free Shipping

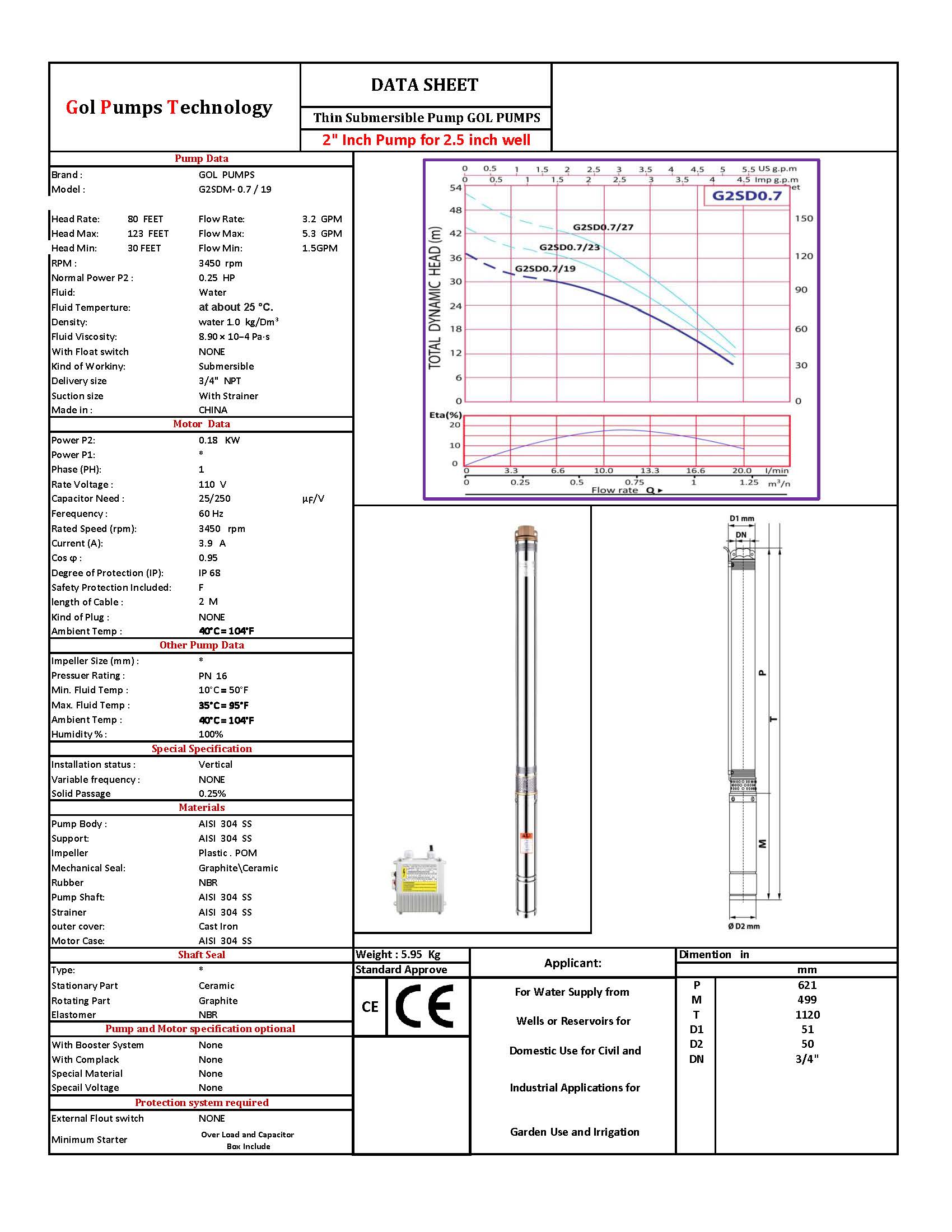

G2SDM 0.7-19 110 DATA SHEET thin submersible pump
SKU N/A Categories , , , , Tags ,

Additional information

Voltage

110/115 volt, 220/230 volt
AC/DC Pumps

AC
Brand

Gol Pumps
AC Voltage

110/220 Dual
Category AC Pumps

Thin Submersible Well
Well Diameter (Inch)

2"

$342.99

This 2″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 123 feet of head and is great for 2.5″ diameter wells.

  • Water supply from well and reservoirs
  • Comes auto control box
  • Rewindable motor

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • For civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to +35
  • Maximum sand content : 0.25%
  • Minimum well diameter : 2″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906



Estimated Delivery: 3-5 Business Days

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Specifications

Pump Type Thin Submersible Pump
Pump Brand GOL Pumps
Pump Model 2SDM0.7/19
Warranty 1 Year
Maximum Head 123ft
Minimum Head 30ft
Maximum Flow 312 GPH
Minimum Fluid Temperature 50°F
Maximum Fluid Temperature 95°F
Maximum Ambient Temperature 104°F
Discharge 3/4″ NPT
Pump Material Stainless Steel 304
Pump Diameter 2″

G 2″/2.5″ SD

Performance Data

MODEL

P2

DELIVERY      N = 3450 1/min

1~

110V/220V

 KW HP Q m3/h 0 0.2 0.4 0.6 0.8 1.0 1.2
l/min 0 3.3 6.6 10 13.3 16.6 20

G 2SDM0.7/19

 0.18 0.25

H (m)

 37 32 30 27 23 16

9

Dimension and Weight

MODEL

DN

 DIMENSION(inch)           WEIGHT(lbs)

PUMP

1~

110V/220V

P

 M T P M T D1

D2

G 2SDM0.7/19

 1/2″ | 3/4″ 24.4 20 44 4 9.5 13.1 51

50



Components

Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM C85500
Suction lantern Cast-Cu ASTM C85500
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI 304 SS
Shaft coupling AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(Graphite-Ceramic/TC)
Shaft  AISI 303 SS-ASTM 1045/5140
Seal lubricant oil Oil for food machinery and pharmaceutic use.
