Gol Pumps 3.5″ Thin Submersible Well Pump – 280Ft – 1890 GPH – 3 Wire – 1.5HP

5/5

Write a Review

Gol Pumps 3.5″ Thin Submersible Well Pump – 280Ft – 1890 GPH – 3 Wire – 1.5HP

Thin Submersible Pump
Free Shipping

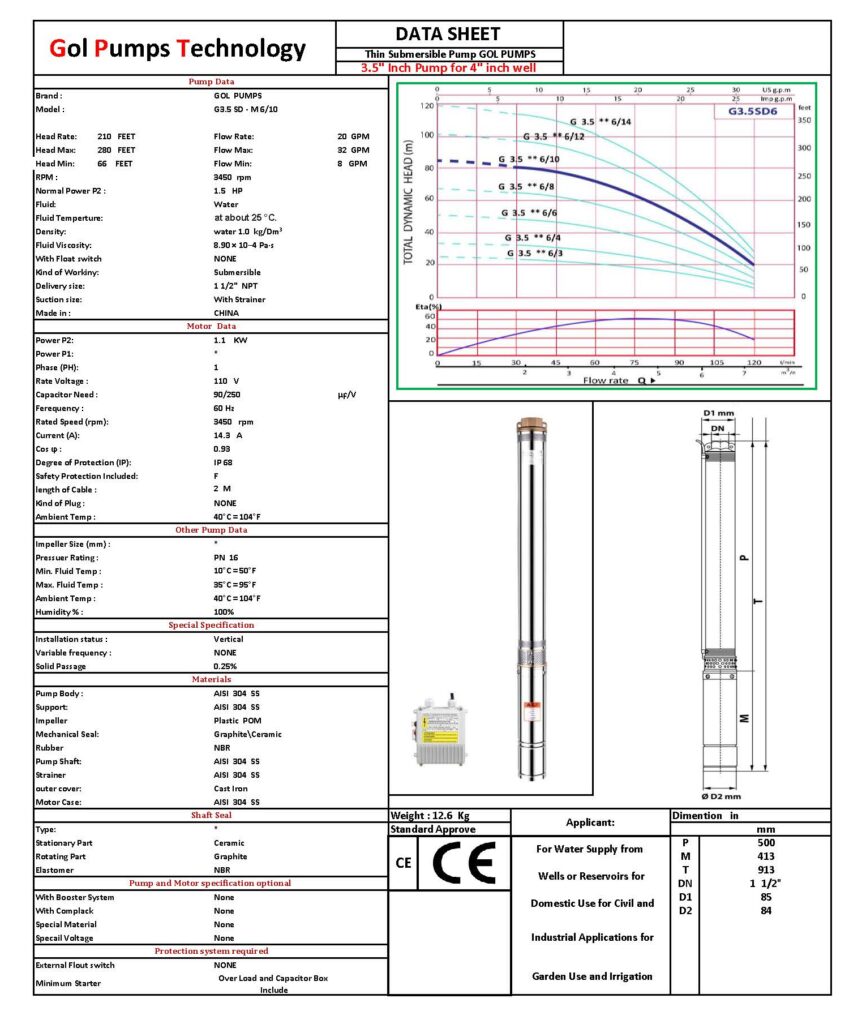

G3.5SDM6 10 110 DATA SHEET

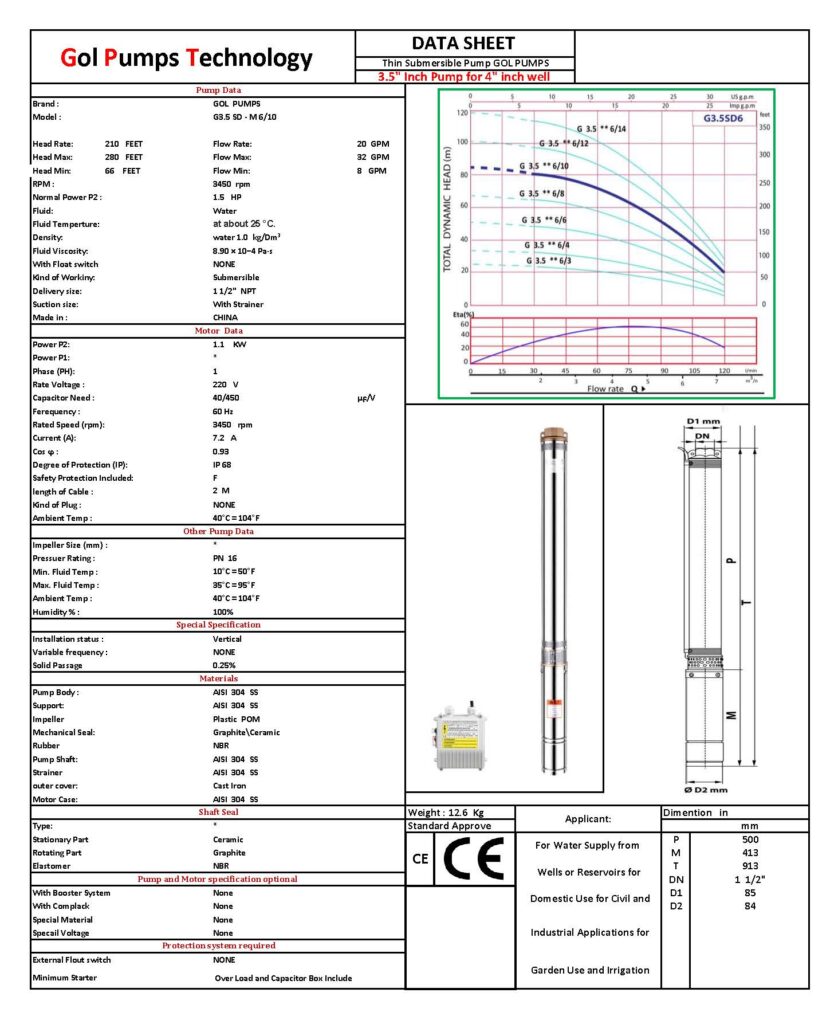

G3.5SDM6 10 220 DATA SHEET
Submersible Pumps Control Box
SKU N/A Categories , , , , Tags , ,

Additional information

AC/DC Pumps

AC
Voltage

110/115 volt, 220/230 volt
Brand

Gol Pumps
AC Voltage

110/220 Dual
Category AC Pumps

Thin Submersible Well
Well Diameter (Inch)

3 1/2"

$359.99

  • Applications:
    • For water supply from wells or reservoirs
    • For domestic use
    • for civil and industrial applications
    • For garden use and irrigation

    Operating conditions:

    • Maximum fluid temperature up to +35
    • Maximum sand content : 0.25%
    • Minimum well diameter : 3.5″

    Motor and Pump:

    • Rewindable motor
    • Single-phase:110V/60Hz or 220V/60Hz
    • Equip with start control box
    • Pumps are designed by casing stressed Curve tolerance according to ISO 9906

    PUMP SPEC:

    • Max Head(ft): 275
    • Max Flow(Gpm): 31.5
    • Discharge: 1 ½ “
    • HP: 1.5
    • Pump Material: Stainless Steel 304
    • Pump Model: 3SDM6/10
    • Pump Diameter: 3.5″
    • Warranty: 1 Year Manufacture

    Estimated Delivery Time: 3 – 5 Business Days

    .

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

This 3.5″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 280 feet of head and is a great fit for 4″ diameter wells.

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3.5″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906

Technical Specifications

Pump Type Thin Submersible Pump
Pump Brand GOL Pumps
Pump Model 3.5SDM6/10
Warranty 1 Year
Maximum Head 280ft
Minimum Head 66ft
Maximum Flow 1890 GPH
Minimum Fluid Temperature 50°F
Maximum Fluid Temperature 95°F
Maximum Ambient Temperature 104°F
Discharge 1.5″ NPT
Pump Material Stainless Steel 304
Pump Diameter 3.5″

3″ GSD Total Dynamic Head



Performance Data



MODEL

P2

DELIVERY      N = 3450 1/min -3

1~

220V

 KW HP Q m3/h 0 0.9 1.8 2.7 3.6 4.5 5.4 6.3 7.2
l/min 0 15 30 45 60 75 90 105 120

3.5SD M6/10

 1.1 1.5

H (m)

 84 83 81 78 72 64 52 37 20

Dimension and Weight

Model

 DN Dimension(inch) Weight(lbs)
1~

110V/220V

 P M(s) M(t) T(s) T(t) P M(s) M(t) T(s)

T(t)
3.5SD M6/10

1 * 0.5″

 20 16.2 15.3 36 35 6 22 19.4 28 25.3





Components

Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM C85500
Suction lantern Cast-Cu ASTM C85500
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI 304 SS
Shaft coupling AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(Graphite-Ceramic/TC)
Shaft  AISI 303 SS-ASTM 1045/5140
Seal lubricant oil Oil for food machinery and pharmaceutic use.
