Gol Pumps 3″ Thin Submersible Well Pump – 130Ft – 942 GPH – 3 Wire – 110/220V – 1/3HP

5/5

Write a Review

Gol Pumps 3″ Thin Submersible Well Pump – 130Ft – 942 GPH – 3 Wire – 110/220V – 1/3HP

Thin Submersible Pump
Free Shipping

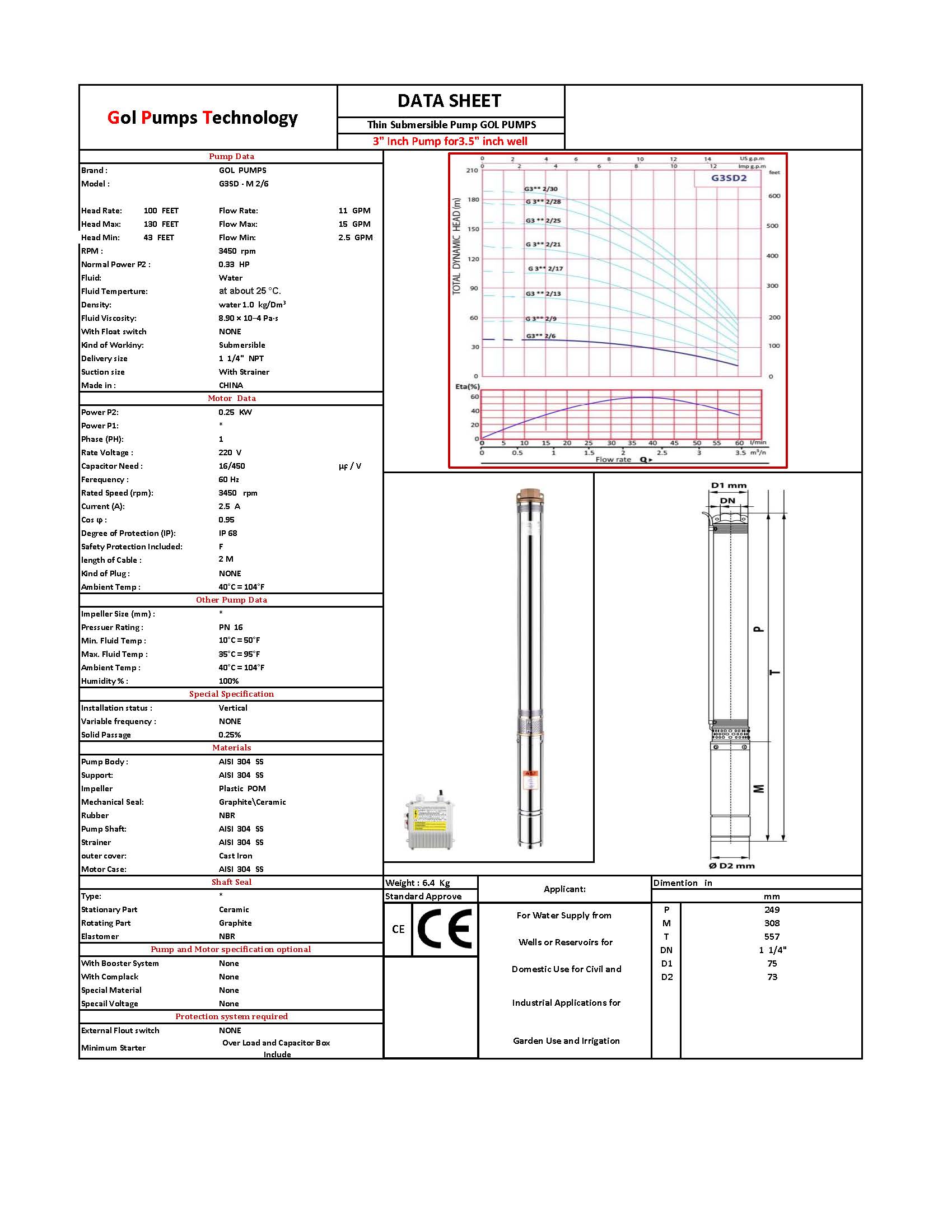

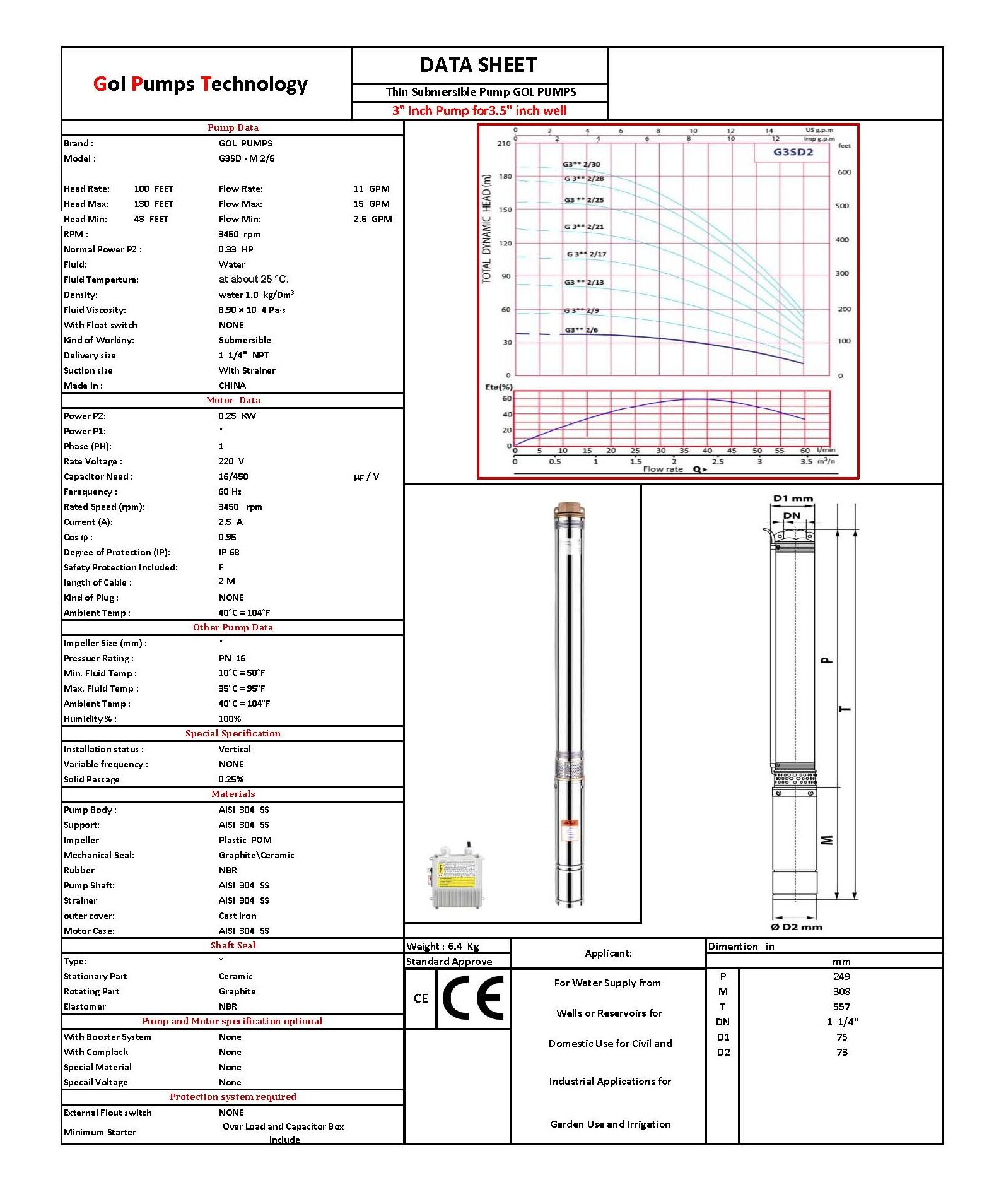

G3SDM2 6 220 DATA SHEET thin submersible pump

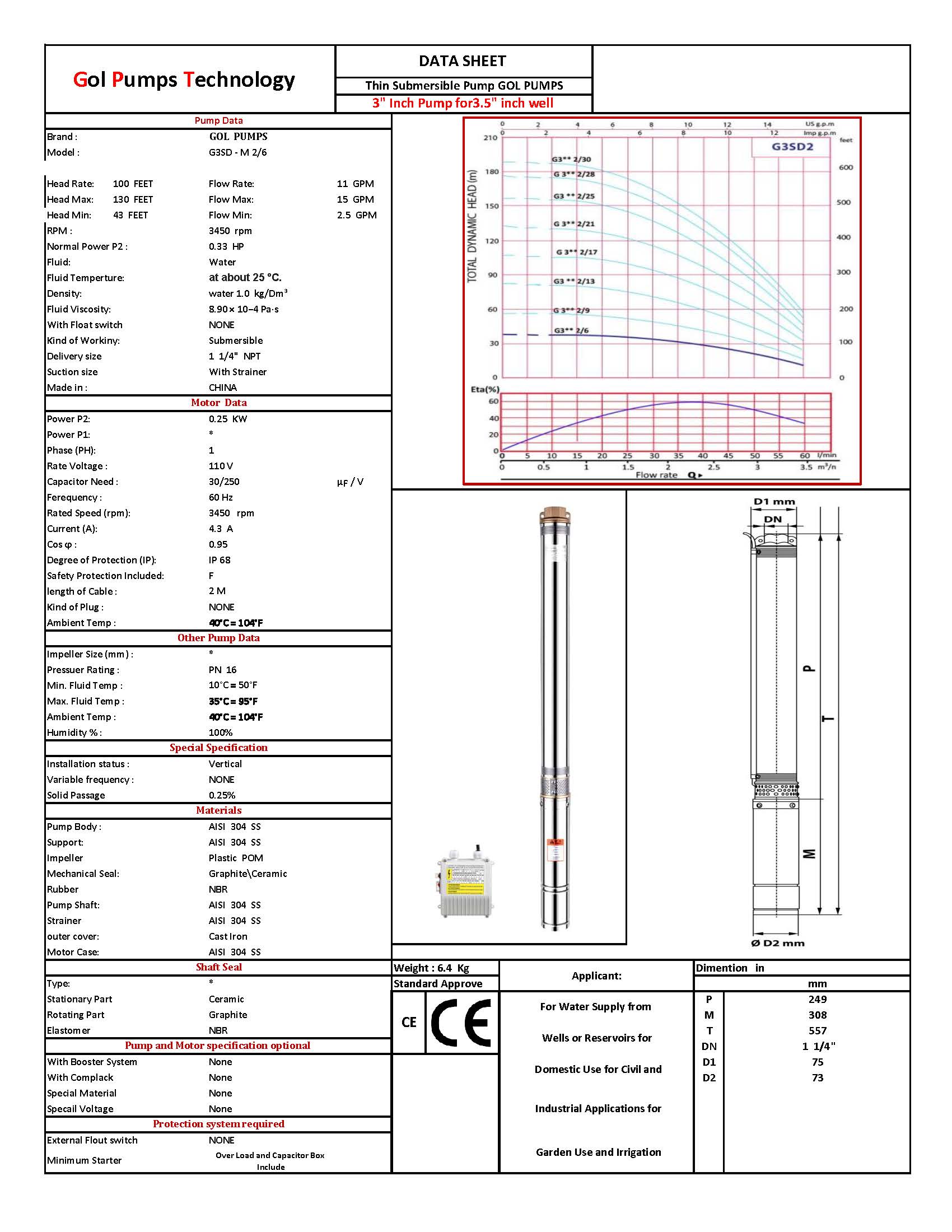

G3SDM2 6 110 DATA SHEET thin submersible pump
Submersible Pumps Control Box
SKU N/A Categories , , , , Tags ,

Additional information

Voltage

110/115 volt, 220/230 volt
AC/DC Pumps

AC
Brand

Gol Pumps
AC Voltage

110/220 Dual
Category AC Pumps

Thin Submersible Well
Well Diameter (Inch)

3"

$247.99

This 3″ thin submersible well pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach a up to 130 feet of head and is a great fit for 3.5″ diameter wells.

  • Water supply from wells and reservoirs
  • Comes with control  box
  • Rewindable motor

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • For civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906



Estimated Delivery: 3-5 Business Days

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Specifications

Pump Type Thin Submersible Pump
Pump Brand GOL Pumps
Pump Model 3SDM0.2/6
Warranty 1 Year
Maximum Head 130ft
Minimum Head 43ft
Maximum Flow 942 GPH
Minimum Fluid Temperature 50°F
Maximum Fluid Temperature 95°F
Maximum Ambient Temperature 104°F
Discharge 1.25″ NPT
Pump Material Stainless Steel 304
Pump Diameter 3″



3″ GSD Total Dynamic Head



Performance Data

MODEL

P2

DELIVERY      N = 3450 1/min

1~

220V

 KW HP Q m3/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3 3.6
l/min 0 5 10 15 20 25 30 35 40 45 50 55 60

3SD M2/6

 0.25 0.33

H (m)

 38 37 37 37 36 35 33 31 28 24 20 16 11

Dimension and Weight

Model

 DN Dimension(inch) Weight(lbs)
1~

110V/220V

 P M(s) M(t) T(s) T(t) P M(s) M(t) T(s)

T(t)
3SD M2/6

1″/1* 0.24″

 10 12 11.3 22 21 3.5 10.6 9 14 12.3





Components

Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM C85500
Suction lantern Cast-Cu ASTM C85500
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI 304 SS
Shaft coupling AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(Graphite-Ceramic/TC)
Shaft  AISI 303 SS-ASTM 1045/5140
Seal lubricant oil Oil for food machinery and pharmaceutic use.



Additional information

Voltage

110/115 volt, 220/230 volt
AC/DC Pumps

AC
Brand

Gol Pumps
AC Voltage

110/220 Dual
Category AC Pumps

Thin Submersible Well
Well Diameter (Inch)

3"
