Performance Curve
Dimensions
| Model | W | H | L | a | b | c | d | e | f | g |
GMD-40RZ | 120 | 130 | 250 | 40 | 64 | 100 | 60 | 48 | 31 | 137 |

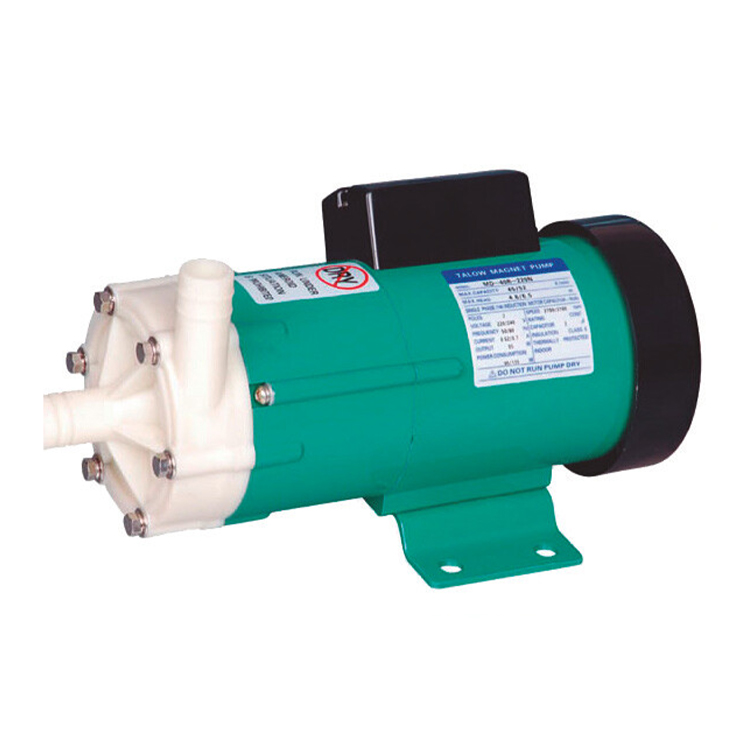

GMD1-40RZ
| Model | Tube Interface | Spiral Interface | Max. Capacity gpm | Max. head ft | Standard outlet ft-gpm | Temperature °F | Specific weight | Motor | ||||
| Inlet | Outlet | Outlet-Inlet | Tube | Input w | Outlet w | Phase | ||||||
| GMD-40RZ | 0.9 | 0.9 | G 3/4 | 0.6 | 3.2 | 38 | 33-2.1 | 0-176 | 1.1 | 65 | 110 | 1 |
