VERTICAL MULTISTAGE PUMP NEMA SBN 90-2 – 40HP, 230/460V, 3Ph, 30KW, 60Hz

5/5

VERTICAL MULTISTAGE PUMP NEMA SBN 90-2 – 40HP, 230/460V, 3Ph, 30KW, 60Hz

Additional information

Weight 518.7 lbs
Dimensions 15 × 14 × 60 in
AC/DC Pumps

AC

Brand

Gol Pumps, WEG

Category AC Pumps

Vertical Multistage Pumps

AC Voltage

208-220 volts, 230 volts, 440-480 volts, 460 volts

Horsepower

40

Phase

Three Phase

Suction Port

4"

Discharge Port

4"

$10,955.99

The SBN (Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.



Applications

WATER SUPPLY AND PRESSURE BOOSTING

  • Pressure boosting in buildings, hotels, residential complexes
  • Pressure booster stations, supply of water networks
  • Pressure boosting for industrial water supply

IRRIGATION AND AGRICULTURE

  • Greenhouses
  • Sprinkler irrigation
  • Field irrigation (flooding)

LIGHT INDUSTRY

  • Washing and cleaning systems
  • Car washing facilities
  • Fire fighting systems
  • Process water systems
  • Machine tools (cooling lubricants)

WATER TREATMENT

  • Water softeners and de-mineralization Reverse Osmosis systems
  • Distillation systems
  • Filtration
  • Ultra-filtration systems

HEATING, VENTILATION AND AIR-CONDITIONING

  • Boilers
  • Induction heating
  • Heat exchangers
  • Refrigerators
  • Cooling towers and systems
  • Temperature control systems

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Data

More Details

Model SBN 90-2 NEMA
Brand Gol Pumps
Manufacturer’s Warranty 1 year Limited Warranty
Material Stainless Steel 316
Port Size (in.) 4
Max Flow (GPH) 38400
HP 40
Volts 230/460V – Three phase – 60Hz
Amps (A) 97.2/51.4
Max. Total Head (ft.) 328
Max. Suction Lift (ft.) 17
Max. PSI 145
Suction Port (in.) 4
Discharge Port (in.) 4
Centrifugal Yes
Dimensions L x W x H (in.) 15.7 x 18.8 x 54.2
Product Weight (lbs.) 518.7

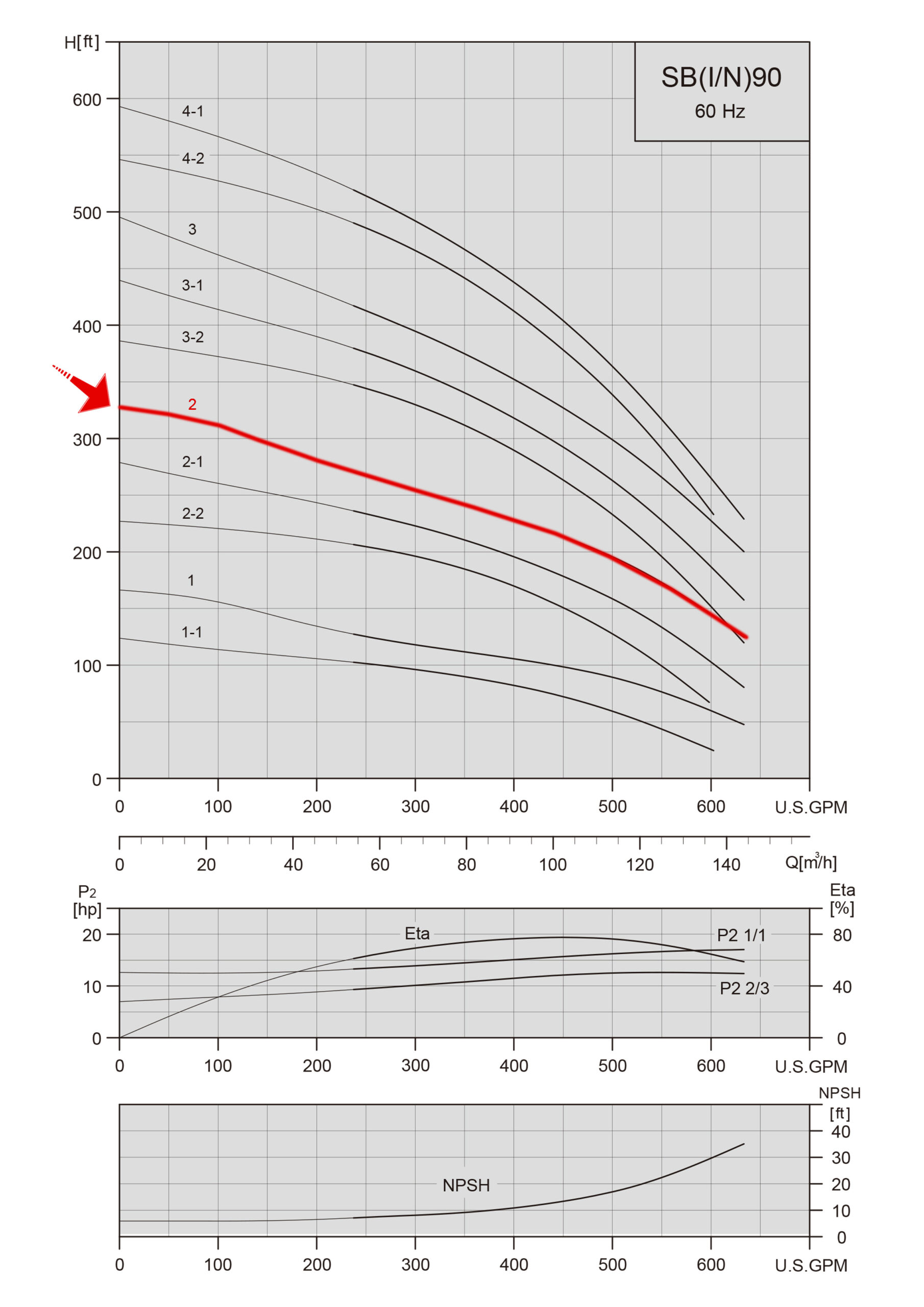

Performance Curve

Dimensions

60Hz Motor P2 Nominal Current (A) Dimension (inch) Net Weight (lb)
Three phase ANSI Flange Port Size NEMA Frame TEFC motors
Pump type [KW] [HP] 230/460V H1 DNA DNM
SBN 90-2 NEMA 30 40 97.2/51.4 30.34 4 4 284/6TSC 518.7

Parts List and Materials
