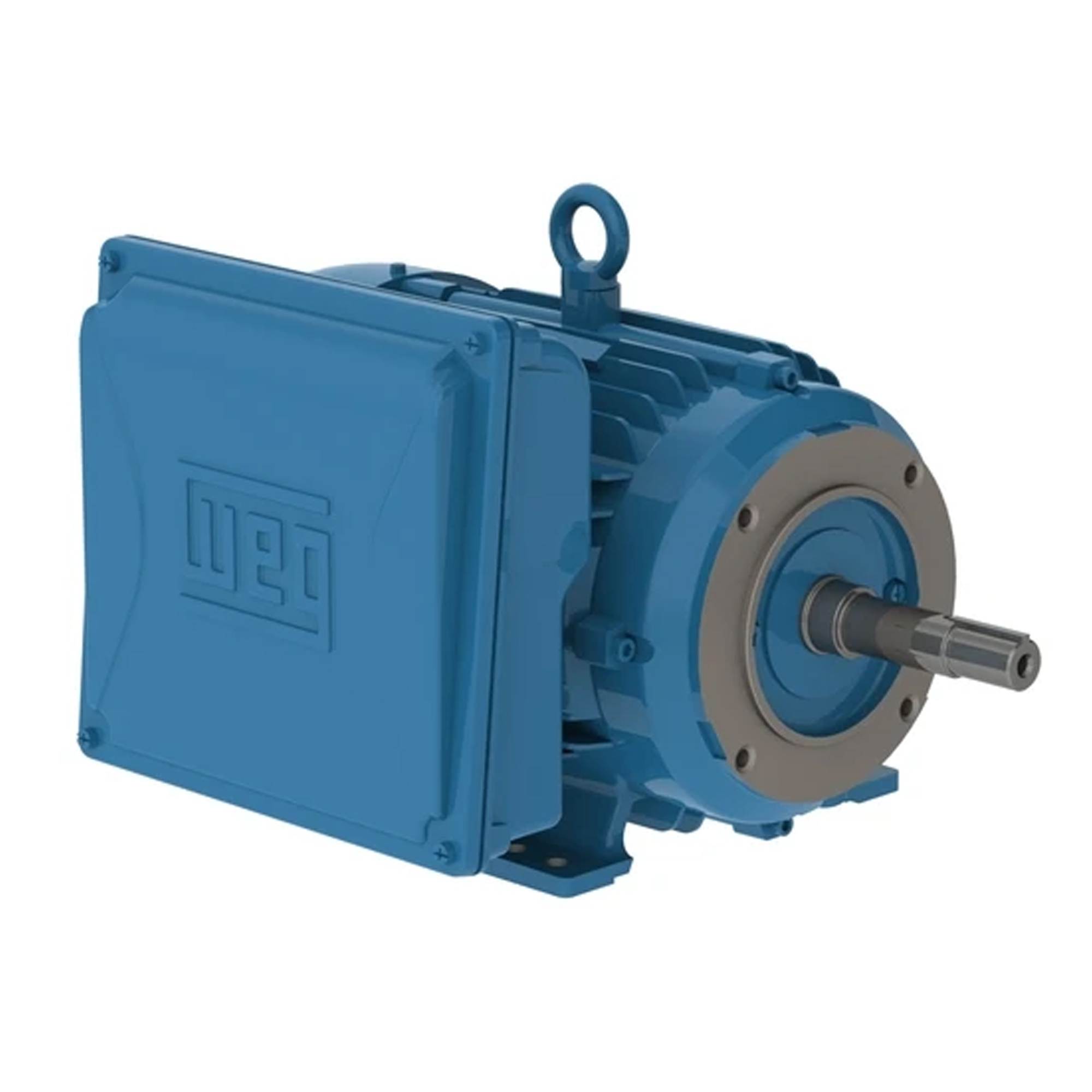

W22 JM Pump – 5 HP, 115/208-230V – 1Ph, 3600RPM, IC411 – TEFC – Foot-mounted, Model 00536ES1B184JM-W22
5/5
W22 JM Pump – 5 HP, 115/208-230V – 1Ph, 3600RPM, IC411 – TEFC – Foot-mounted, Model 00536ES1B184JM-W22
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 115/208 volts, 230 volts |
| Horsepower | 5 |
| Phase | Single Phase |
| Material | Cast Iron |
| RPM | 3600 |
| Explosion Proof | No |
Unit Price
$1,464.99
High starting torque
For applications on commercial and industrial pumps (JM/JP – mechanical seal/gasket)
Suitable for domestic and rural power supply conditions
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 5 HP |
| Mounting | Foot-mounted |
| Flange | C |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
For all products over 120 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 120 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
Description
Technical Data
Technical Data
| Frame | 182/4JM |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3515 rpm |
| Slip | 2.36 % |
| Rated voltage | 115/208-230 V |
| Rated current | 41.1/22.1-20.8 A |
| L. R. Amperes | 358/192-181 A |
| LRC | 8.7x(Code K) |
| No load current | 16.8/0.000-8.60 A |
| Rated torque | 7.47 ft.lb |
| Locked rotor torque | 320 % |
| Breakdown torque | 320 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.1898 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 103 lb |
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 115/208 volts, 230 volts |
| Horsepower | 5 |
| Phase | Single Phase |
| Material | Cast Iron |
| RPM | 3600 |
| Explosion Proof | No |
