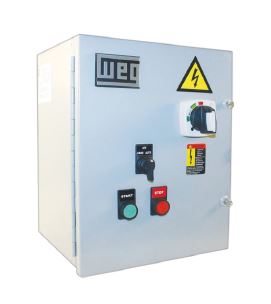

WEG CONTROL PANEL ~ (10HP) ~ ESWF Series Combination Starters ~ 460V
5/5
WEG CONTROL PANEL ~ (10HP) ~ ESWF Series Combination Starters ~ 460V
Free Shipping
$909.99
ESWF Series Combination Starters
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing combination starters, ESWF series, up to 75 HP at 460VAC (105A) with or without control power transformers for three-phase applications.
| Technical Data | ||
| Model | ESWF-18V47N3-D11 | |
| Panel type | Across the line | |
| Bypass type | None | |
| Enclosure type | Wall mount | |
| Enclosure rating | Type 4/12 | |
| Thermal Management | None | |
| General enclosure options | None | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Horsepower (HP) | 10HP | |
| Main voltage | 460V | |
| Control Voltage | 460V | |
| Frequency | 60Hz | |
| SCCR rating | 5 kAIC | |
| Control power transformer | No transformer required | |
| Reactor/Filter | None | |
| Communication | None | |
| Control options | Hand/OFF/Auto Selector Switch | |
| Dimensions | Nominal height: 508.0 mm / 20.0 in Nominal width: 406.4 mm / 16.0 in Nominal depth: 203.2 mm / 8.0 in | |
| Certification | UL | |
Standard Features:
• Single and three-phase voltage supply
• Din rail or surface mounting with screws
• Voltage range: • 110-127 Vac and 200-240 Vac for single-phase models
• 200-240 Vac for three-phase models
• Current / Power range: up to 15.2 Amps / 3.7 kW (5 HP)
• Control mode: Scalar (V/Hz) or Voltage Vector (VVW)
• Switching frequency: 2.5, 5, 10 or 15kHz
• Overload capacity: 150% for 60 sec. every 10min, 200% for 3 sec. every 10min.
• Degree of protection: IP20
• Operating temperature: 14 • 122°F (50°C); up to 140°F (60°C) with current derating (2% per 1°C above 50°C)
• Altitude: 0 • 3300 ft. (1000m); up to 13,200 ft. (4000m) with current derating (1% per100m above 1000m)
• Humidity: 5 to 95% non-condensing
• Integrated brake chopper for frame size B (not available for size A)
• Local keypad supplied as standard
Technical Data
