WEG, Control Panel Enclosed Starter ESW – 15HP, 208-240V, 3PH – ESW-B50V24A-R71
5/5
WEG, Control Panel Enclosed Starter ESW – 15HP, 208-240V, 3PH – ESW-B50V24A-R71
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| Phase | Three Phase |
Unit Price
$282.10

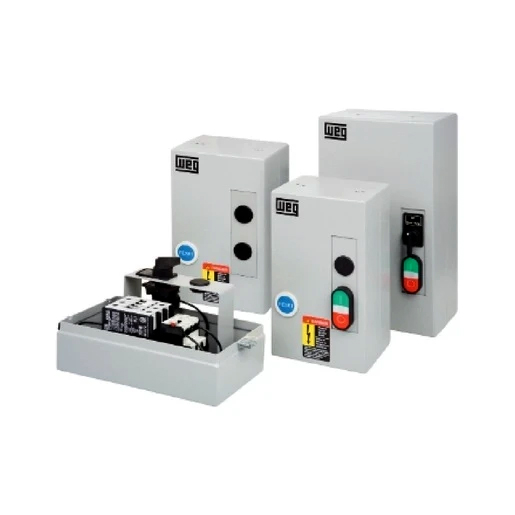

ESW Series Enclosed Starters
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing and non-combination magnetic starters, ESW series, up to 75HP at 460VAC (105A) for three-phase applications and up to 10HP at 230VAC (50A) for single-phase applications.
Standard Features
- Compact design
- Metallic enclosure type 1
- Available in three box sizes M04, M06, and M08
- IEC contactors inside
- Trip class 10 bimetallic overload relays
- Phase loss sensitivity protection
- Automatic and manual RESET options
- Standard START/STOP + RESET buttons or RESET button only
- Easy to connect and operate
Technical Data |
||
| Model | ESW-B50V24A-R71 | |
| Manufacturer product number | 14971493 | |
| Start Type | Direct Three-phase | |
| Maximum power rating | Not applicable | |
| Rated operational voltage | Ue<=600V | |
| Control voltage | 180-208V 50HZ 208-240V 60HZ |
|
| Control devices | A-On-Off Button | |
| Degree of protection | TYPE1 | |
| Starters Complements | Does Not Contain | |
| Rated current (AC-3) | 50A (CWB50) | |
| Overload relay | 32-50A (RW67) | |
| Measuring tool and accessories | Not Applicable | |
| Button type | Unspecified | |
| Button color | Not Specified | |
| Connection Type | Not Applicable | |
Technical Data
Catalog
Estimated Delivery Time: 3 – 5 Business days
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Additional information
| Brand | WEG |
|---|---|
| Phase | Three Phase |
