WEG DRIVE, 380 up to 480V, 3Ph, IP20 Model CFW900B26P0T4DB20Y2B
5/5
WEG DRIVE, 380 up to 480V, 3Ph, IP20 Model CFW900B26P0T4DB20Y2B
Free Shipping
Additional information
| Brand | WEG |
|---|
Unit Price
Original price was: $2,021.99.$1,573.35Current price is: $1,573.35.

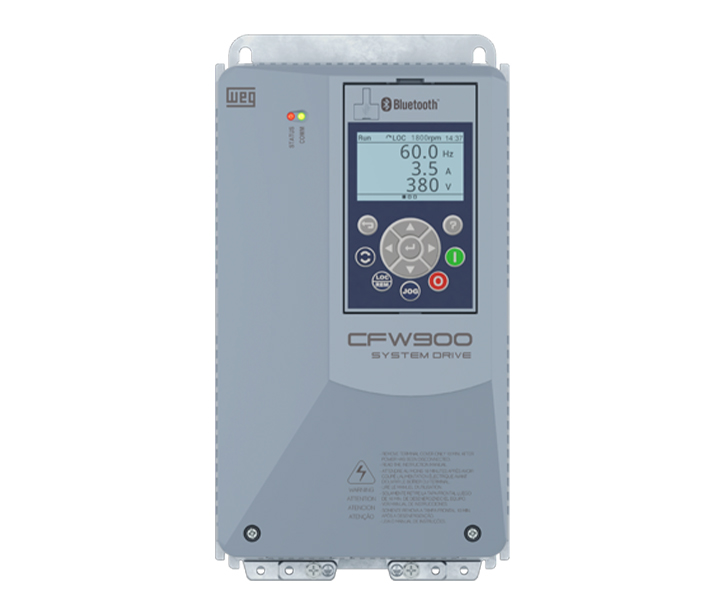

The CFW900 is a high-tech VSD for driving and controlling three-phase induction and permanent magnet motors. It offers excellent static and dynamic performance and highly precise torque, speed and position control. It can be used in a wide range of applications due to its high overload capacity. Thanks to its technology, the CFW900 variable speed drive provides energy savings, safety, increased productivity and quality in the process network in which it is implemented.
Product features
| Manufacturer product number | 14960037 |
|---|---|
| Power supply | 380 up to 480 V |
| Input phases | Three-phase |
| Configuration | Basic |
| Rated current (HD) | 21 |
| RFI filter | With filter (C3 category) |
| Enclosure | IP20 |
| Dynamic braking | Yes |
| Safety Stop | Functional safety |
Technical Data
Estimated Delivery Time: 3 – 5 Business days
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Description
Main features
- Supply voltage:
- 200 to 240 V single- or three-phase: output current 4.6 to 10.0 A (1.1 to 2.2 kW – 1.5 to 3.0 hp).
- 200 to 240 V three-phase: output current 4.6 to 370 A (1.1 to 110 kW – 1.5 to 150 hp).
- 380 to 480 V three-phase: output current 2.8 to 760 A (1.1 to 440 kW – 1.5 to 550 hp).
- 500 a 600 V three-phase: output current 2.9 to 54 A (1.5 a 37 KW – 2 a 50 hp).
- Small size for better use of panel space.
- USB port incorporated into the HMI.
- Increased processing capacity.
- Possibility of memory expansion with 8GB MicroSD Card with industrial temperature.
- IoT Product – Ready with MQTT protocol in standard product.
- IE2 efficiency rating (IE C 61800-9-2 / EN 50598-2).
- Integrated STO (Safe Torque Off) and SS1-t (Safe Stop 1 time controlled) functions.
Applications
The CFW900 has advanced features to meet the most demanding applications. Main segments:- Oil and gas.
- Pulp and Paper.
- Sugar and Alcohol.
- Cement and Mining.
- Water Treatment.
- Compressors.
- Pumps.
- Ventilation.
- Load movement, among others.
| Control method – induction motor | Scalar, VVW, Vector with and without encoder |
|---|---|
| Rated efficiency | ≥ 97% |
| Link Inductor | Yes |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| Temperature | -10 °C a 50 °C |
| USB port | Yes, available in HMI |
| Memory card | MicroSD (card not included) |
| I/O standard | 6 x DI; 2 relés NA; 1 relé NA/NF x DO; 2 x AI; 2 x AO. |
| Safety Stop | Functional safety |

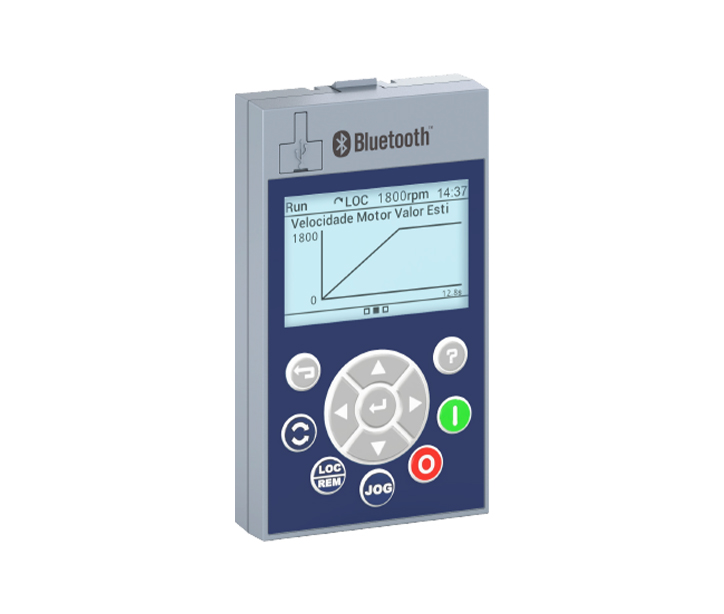

| Display | Graphic LCD |
Additional information
| Brand | WEG |
|---|
