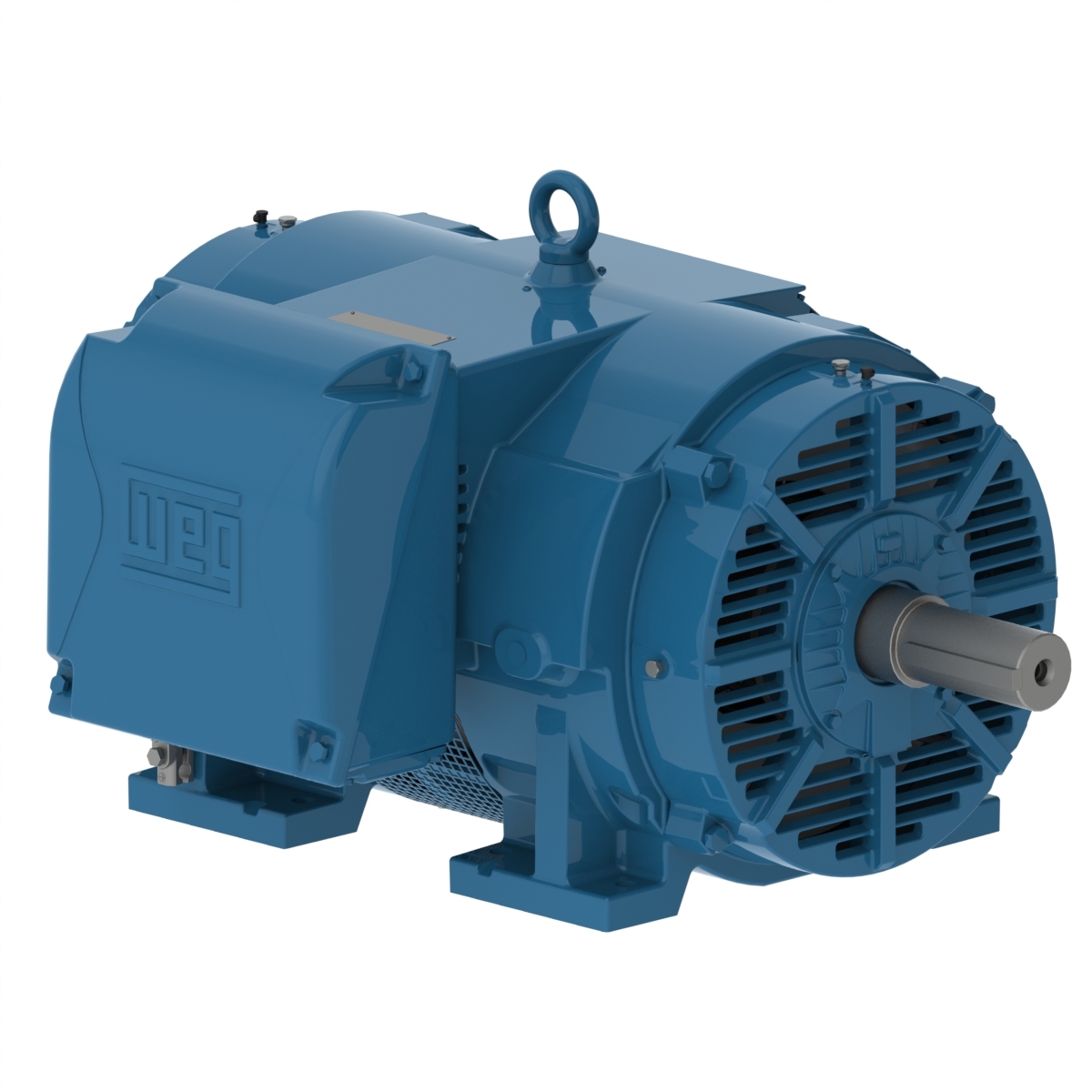

Technical Data
V-Ring Seal
V-Ring Seal to avoid the liquids and dust inlet in the motor.
Capacitor
With runner capacitor, runner and permanent capacitor or permanent capacitor.
Cooling System
• The cooling system (fan, non-drive end shield and fan cover) is designed to minimize noise level and improve thermal efficiency.
• Steel plate fan cover provides high mechanical strength, corrosion resistance and extended lifetime.
Cast Iron Frame
• FC-200 (EN GJL 200) cast iron frames meeting impact level IK08 (5J) ensuring superior mechanical strength for the most demanding applications.
• Solid motor feet providing excellent rigidity, allowing easier alignment and installation.
Centrifugal Switch
The starting system of W40 motors was completely redesigned to improve functionality, thus increasing system reliability and lifespan.
Technical Data
| Brand | WEG |
|---|---|
| Frame | 447/9TS |
| Output | 400 HP (300 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3565 rpm |
| Slip (%) | 0.97 |
| Rated Voltage (V) | 460 |
| Rated Current (A) | 442 |
| L. R. Amperes (A) | 2873 |
| LRC (A) | 6.5x (Code G) |
| No load Current (A) | 100 |
| Rated Torque (ft.lb) | 589 |
| Locked Rotor Torque (%) | 170 |
| Breakdown Torque (%) | 250 |
| Locked Rotor Time | 25s (cold) 14s (hot) |
| Moment of Inertia (J) | 39.1 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 87.0 dB(A) |
| Approx. Weight (lb) | 2025 |
Efficiency
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 95.3 | 95.4 | 95.8 | 95.8 |
Power Factor
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.61 | 0.83 | 0.88 | 0.89 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Main terminal box hole | 2 x NPT 3″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 – C3) |
| Grounding Lugs | Double |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Fan material | Plastic |

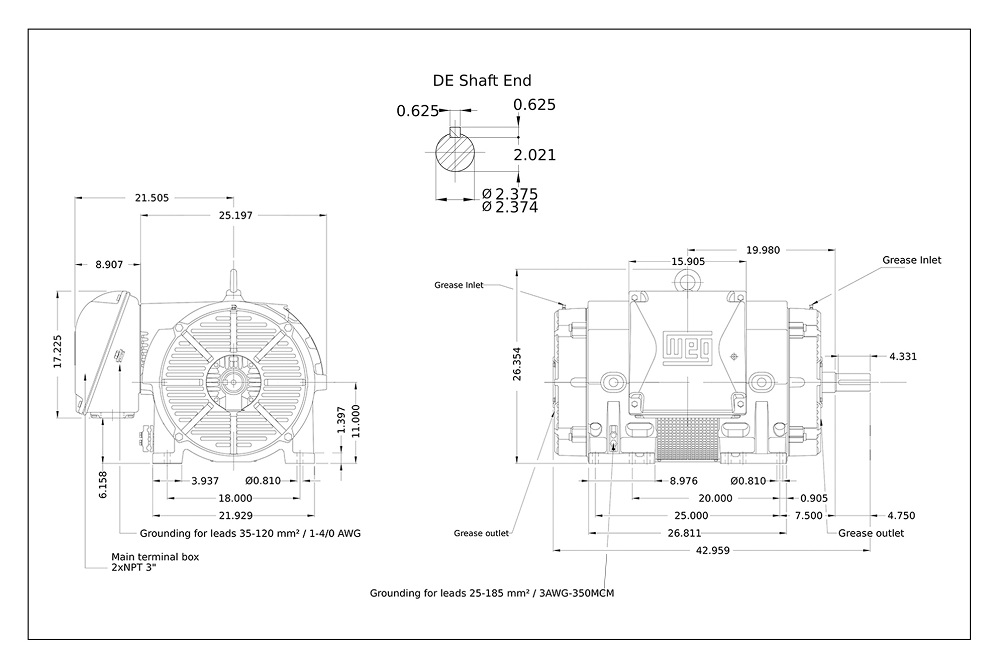

Dimensions
