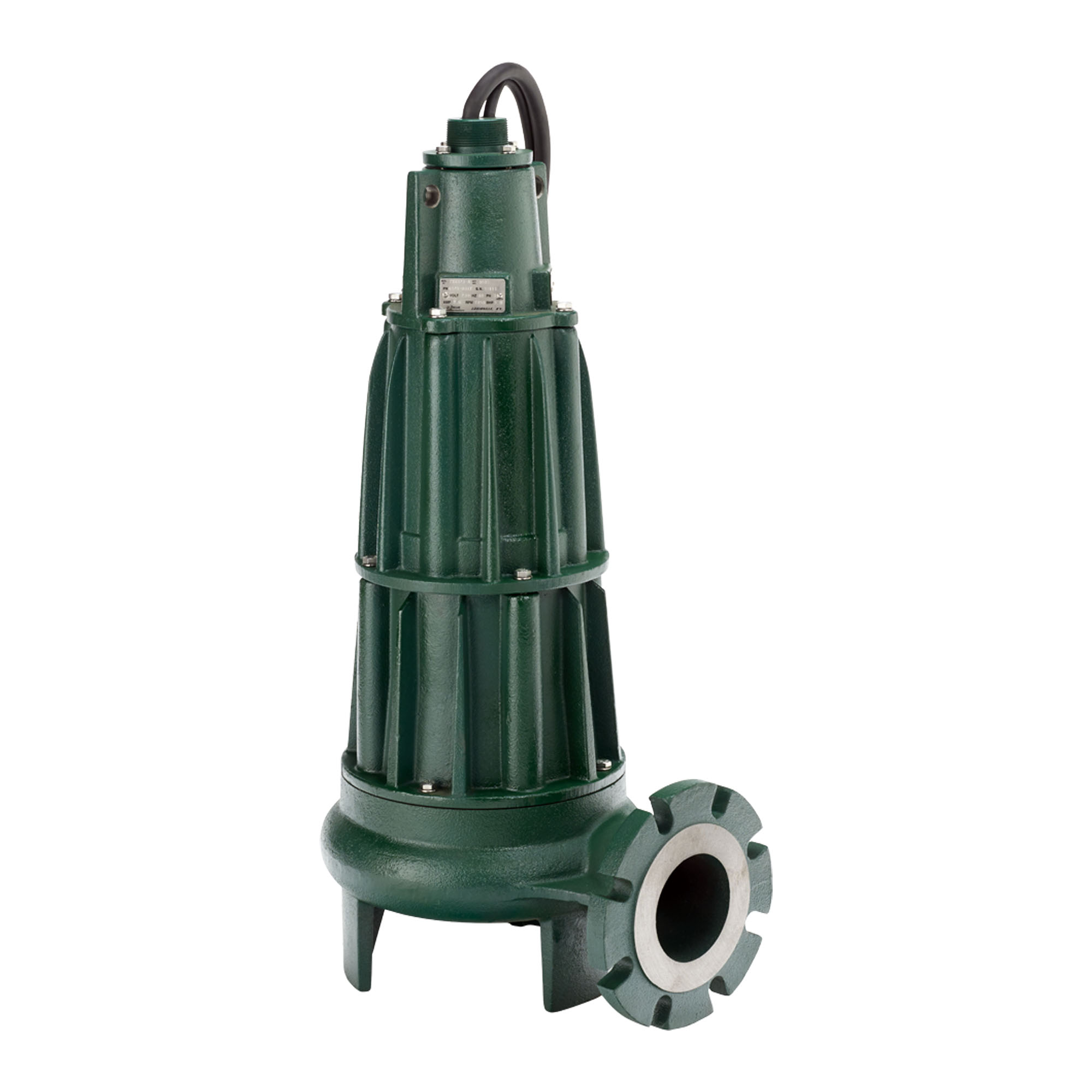

Our Model F661 Sewage Pump is designed to transfer groundwater, raw sewage or effluent in sewage or stormwater removal applications. The 7-1/2 HP F661 is a nonautomatic pump requiring a control panel and float switch for operation that allows complete access to setting the on and off points in the field. This allows the pump to take full advantage of large size basins capacities.

The pump’s semi-open impeller allows it to pass 2-1/2″ spherical solids. The impeller’s clearance in relation to the pump housing allows water and solids to pass freely through the pump.

The Model 661’s motor housing, pump housing, and base are each constructed of cast iron. The pump’s identification tag and hardware are made of non-corrodible stainless steel. This attention to detail ensures your pump will withstand the most demanding applications.

Every pump is submerged in water and audited to ensure it meets your expectations and delivers peace of mind right-out-of-the-box.

Features and Benefits

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Nonautomatic pump that will require a piggyback float switch or control panel to control the pump’s on / off level
• Corrosion resistant ductile iron vortex impeller to allow free passage of 2-1/2″ spherical solids which prevents clogging and increases reliability
• Stainless steel screws, handle, and hardware to prevent rust and corrosion
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
• Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

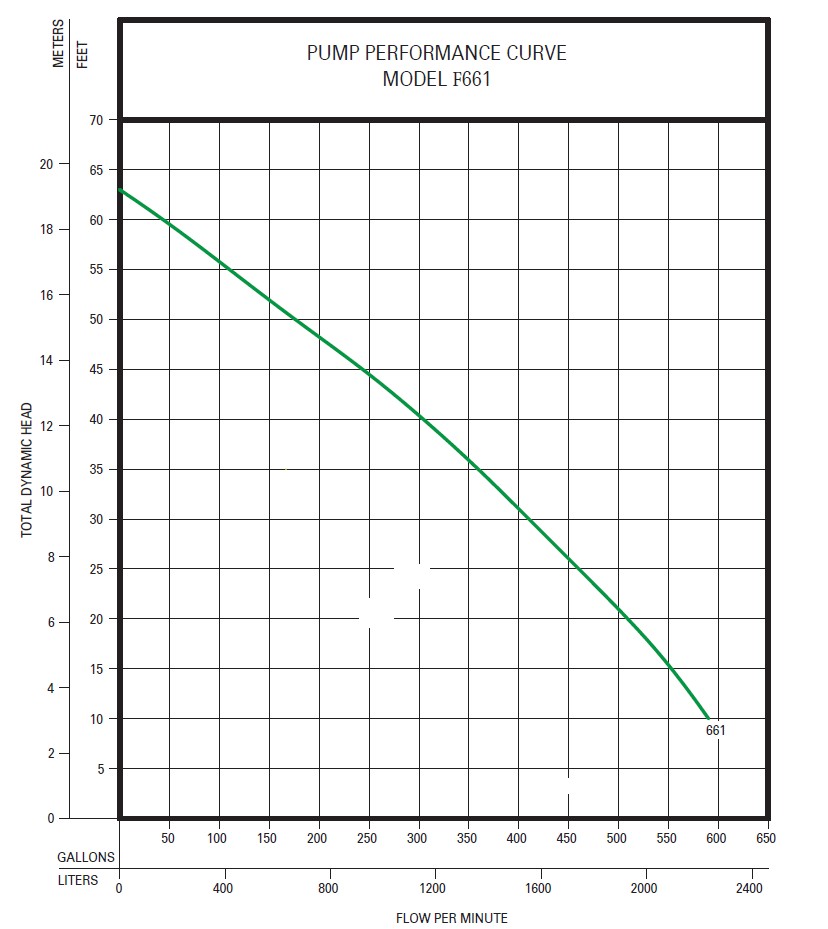

Product Curve

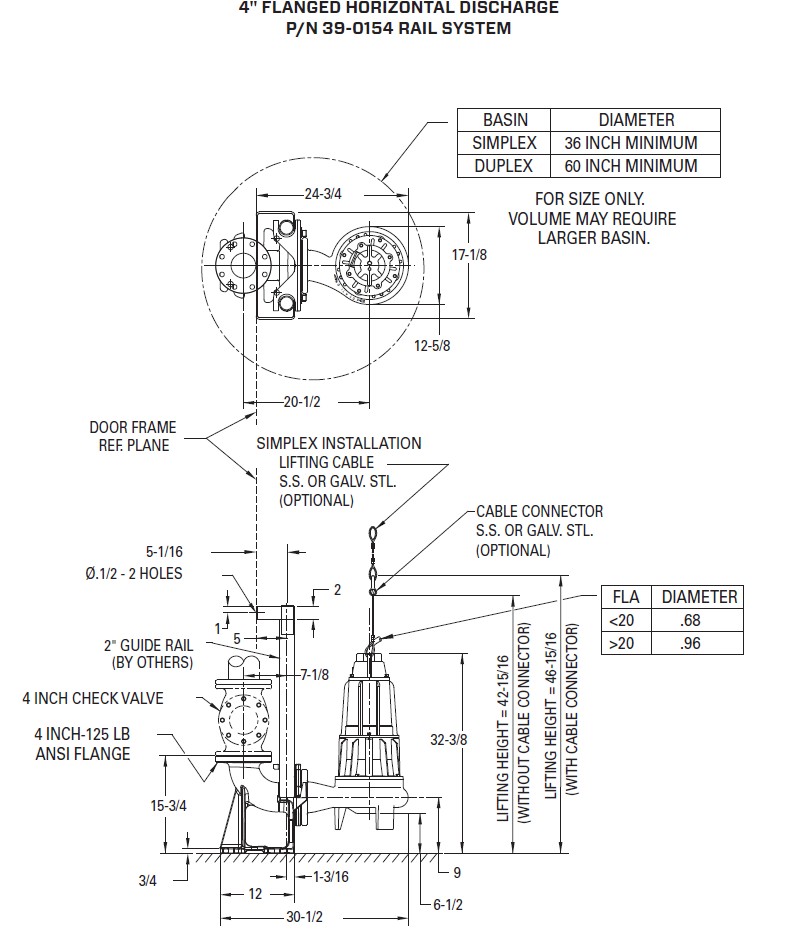

Product Dimensions

Product Specifications

Type: Automatic

Weight: 245 lbs

Dimensions: Height 45 in   x   Width 24 1/2 in   x   Length 32 3/4 in.

Horsepower: 7.5 HP

Voltage: 230 V

Phase: 3 Ph

Amps: 22

Hertz: 60 Hz

RPM: 1750

Discharge: 4″ Flange

Solids Handling: 2-1/2″ (63 mm) spherical solids

On/Off Points: 9-1/2″ (24 cm) / 3″ (8 cm)

Impeller Material: Nonautomatic

Impeller Type: Ductile Iron

Cord Length: 50′

Certificate: CSA – UL
