Flint & Walling Multistage Booster pump, 5HP, 1PH, 230V, Model SPM501
5/5
Flint & Walling Multistage Booster pump, 5HP, 1PH, 230V, Model SPM501
Additional information
| AC Voltage | 230 volts |
|---|---|
| Category AC Pumps | Horizontal Multistage Pumps |
| Horse power Ac | 5 hp |
Unit Price
$4,065.99
Pressure Booster Pumps
Upgrade your centrifugal water system with our SPM High Power Centrifugal Pump for a convenient and efficient solution without the disruptions of extensive plumbing changes.
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Description

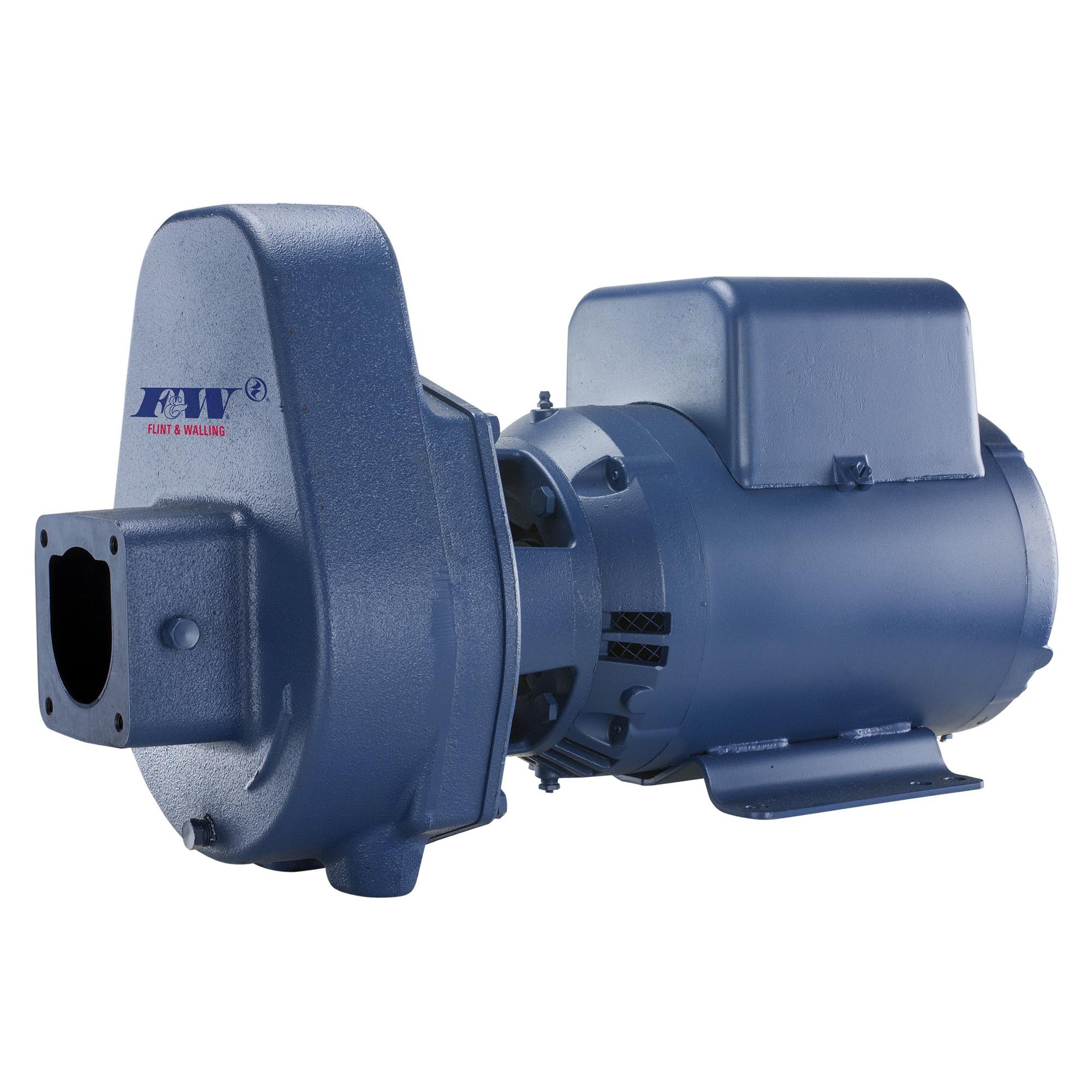

Upgrade effortlessly with our SPM High Power Centrifugal Pumps, designed for seamless replacement of current 3 & 5 HP centrifugal without disrupting plumbing. Designed for hassle-free replacement, the SPM series ensures a smooth transition without the need for changing piping, flapper valves, or other tedious plumbing work.
Achieve priming in less than one minute, providing swift operational readiness for your water system needs.
- ENGINEERED BY FLINT & WALLING
- Powered by Baldor
- Available in single or three phase
- 1 year limited warranty

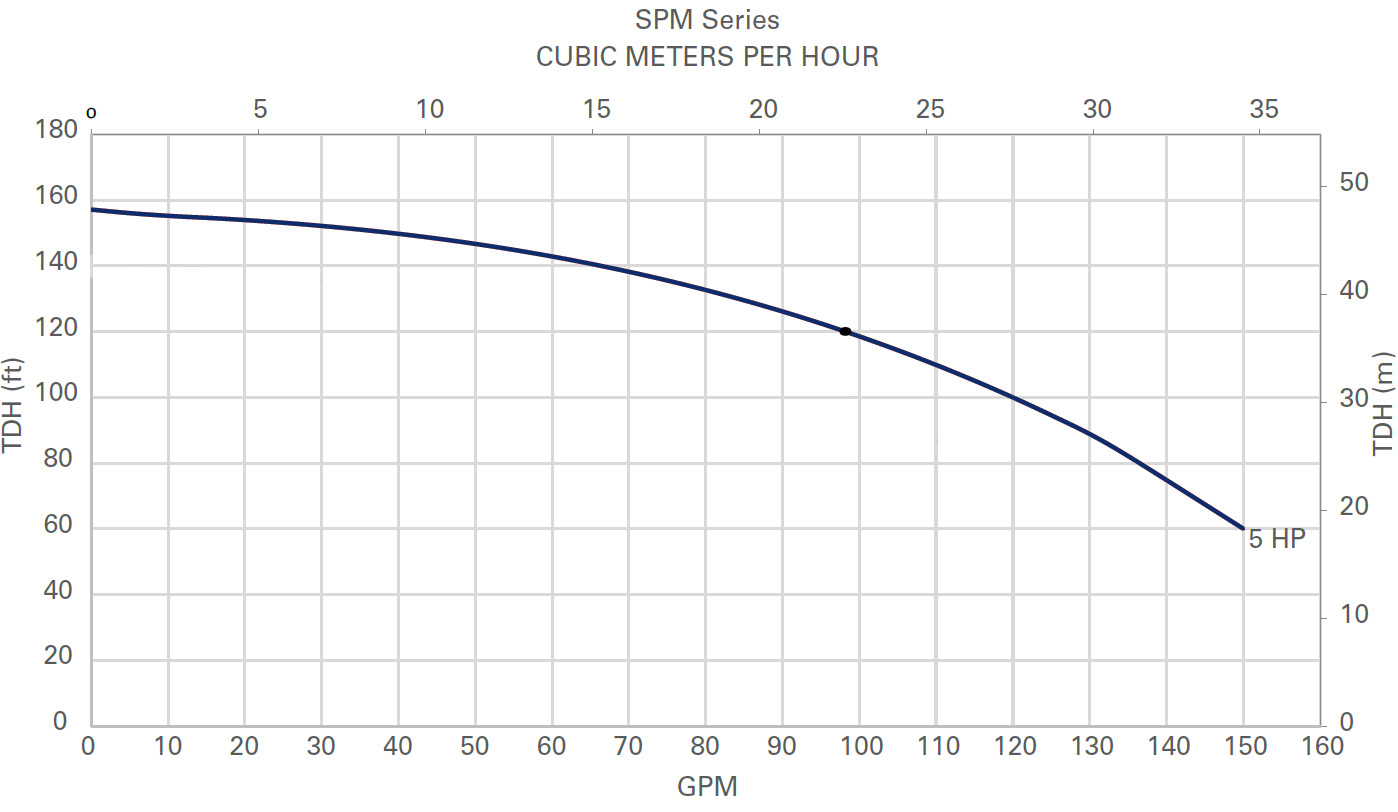

Performance Curve
|
MODEL NUMBER |
SPM 501 |
| HP | 5 |
| Voltage | 208-230 / 460 V |
| Current | 13.0 – 12.2 / 6.1 Amp |
| Phase | SPM 501 – single |
| Motor Frame | 182 JM |
| Impeller | Low Lead brass |
| Diffuser | Cast Iron |
| Pipe Plug | Stainless steel 1/4″ NPT |
| Seal | John Crane type 2100 1-1/4″ |
| O-Rings | Buna N |
| Suction Tapping | 2-1/2″ |
| Suction Flange* | 6″ ANSI 125 bolt flange patt |
| Ambient Air Temp | 40° – 104° F |
| Water Temp | 55° – 200° F |
| Max Case Pressure | 120 PSI |
Additional information
| AC Voltage | 230 volts |
|---|---|
| Category AC Pumps | Horizontal Multistage Pumps |
| Horse power Ac | 5 hp |
