STANDARD PANEL , 350 HP, 460 V – Model GPH2350QC4001
5/5
STANDARD PANEL , 350 HP, 460 V – Model GPH2350QC4001
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| Voltage | 460 volt |
| Horsepower | 350 |
| Phase | Three Phase |
Unit Price
Original price was: $9,794.99.$9,296.90Current price is: $9,296.90.
The Combination Soft Starter is a NEMA 4/12 Enclosed industrial general purpose AC motor soft starter package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections.
The Combination Soft Starter is built to complement the ruggedness and reliability of WEG motors, providing a complete, simple, and cost effective AC motor starting and protection solution.
| Product Features | ||
| Manufacturer product number | 15472472 | |
|---|---|---|
| Panel type | SOFT-STARTER | |
| Horsepower (HP) | 350 HP | |
| Main voltage | 460 V | |
| Bypass type | None | |
| Control options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad | |
| Enclosure rating | Type 4 | |
Technical Data
For all products over 120 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 120 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
Description
Applications
- Centrifugal Pumps
- Screw Compressors
- Wood Chipper
- Veneer Lathe
- Saw
- Conveyor
| Technical Data | ||
| Series | GPH2 | |
|---|---|---|
| Panel type | SOFT-STARTER | |
| Horsepower (HP) | 350 HP | |
| Enclosure type | Free Standing | |
| Thermal Management | None | |
| General enclosure options | Floor-Stand Kit | |
| Main voltage | 460 V | |
| Control Voltage | 120 V | |
| Frequency | 60 Hz | |
| SCCR rating | 5 kAIC | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Bypass type | None | |
| Control power transformer | 200 VA – Open | |
| Reactor/Filter | None | |
| Communication | None | |
| Control options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad | |
| Enclosure rating | Type 4 | |

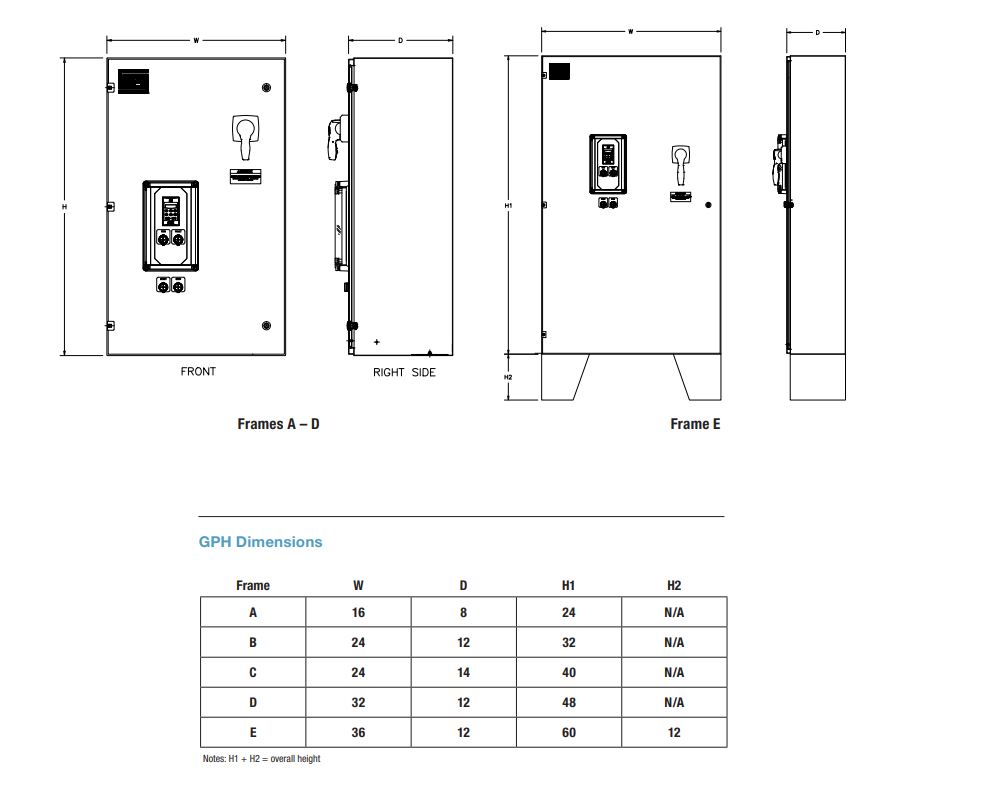

| Nominal height | 1524.0 mm / 60.0 in | |
| Nominal width | 914.4 mm / 36.0 in | |
| Nominal depth | 406.4 mm / 16.0 in | |
| Certification | UL/cUL | |
Additional information
| Brand | WEG |
|---|---|
| Voltage | 460 volt |
| Horsepower | 350 |
| Phase | Three Phase |
