VERTICAL MULTISTAGE PUMP – 60HP – 460V – 3PHASE – Model SBN 45-7

5/5

VERTICAL MULTISTAGE PUMP – 60HP – 460V – 3PHASE – Model SBN 45-7

Additional information

Dimensions 14.5 × 13 × 38 in
AC/DC Pumps

AC

Category AC Pumps

Vertical Multistage Pumps

Brand

Gol Pumps

AC Voltage

440-480 volts, 460 volts

Horsepower

60

Phase

Three Phase

Suction Port

3"

Discharge Port

3"

$12,516.00

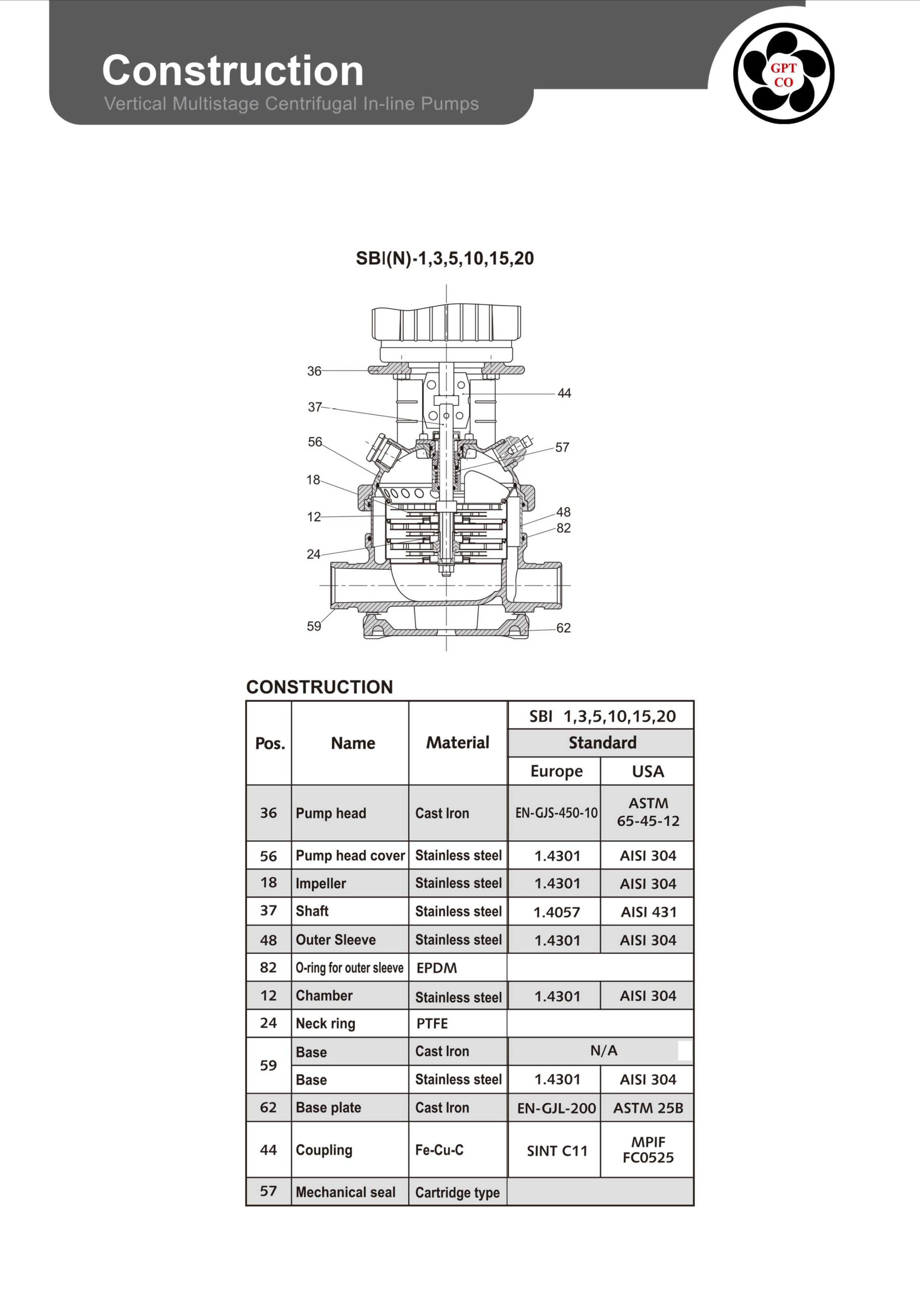

The  SBN(Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the I EC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.

Applications:

WATER SUPPLY AND PRESSURE BOOSTING

  • Pressure boosting in buildings, hotels, residential complexes
  • Pressure booster stations, supply of water networks
  • Pressure boosting for industrial water supply

IRRIGATION AND AGRICULTURE

  • Greenhouses
  • Sprinkler irrigation
  • Field irrigation (flooding)

LIGHT INDUSTRY

  • Washing and cleaning systems
  • Car washing facilities
  • Fire fighting systems
  • Process water systems
  • Machine tools (cooling lubricants)

WATER TREATMENT

  • Water softeners and de-mineralization Reverse Osmosis systems
  • Distillation systems
  • Filtration
  • Ultra-filtration systems

HEATING, VENTILATION AND AIR-CONDITIONING

  • Boilers
  • Induction heating
  • Heat exchangers
  • Refrigerators
  • Cooling towers and systems
  • Temperature control systems



Motor:

• Squirrel cage in short circuit, aluminum casing up to 22 kW, totally enclosed, fan-cooled, 2- pole standard motor.
• Standard supply Stairs motors up to 15 kW. Other motor brands for higher powers.
• Electrical data
-Enclosure class: IPSS
-Insulation class: F
• The motors have efficiency values that fall within the range normally referred to as high efficiency.
• Ambient temperature: Max. +122°F

Pumped Liquids

SB (I, N) pumps can handle a wide variety of liquids, each with its own characteristic.

SB(I):

  • Non-corrosive liquids
  • For fluid transfer, circulation and pressure boosting of cold or hot clean water.

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

The SBN(Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the I EC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.



More Details:

Model SBN 45-7
Brand Gol Pumps
Manufacturer’s Warranty 1 year Limited Warranty
Material Stainless Steel 316
Port Size (in.) 3
Max Flow (GPH) 19200
HP 60
Volts 460V – 3 Phase
Amps[A] —–
Max. Total Head (ft.) 843
Max. Suction Lift (ft.) N/A
Max. PSI N/A
Suction Port (in.) 3
Discharge Port (in.) 3
Centrifugal Yes
Dimensions L x W x H (in.) 14.3 x 13 x 36.2
Product Weight (lbs.)

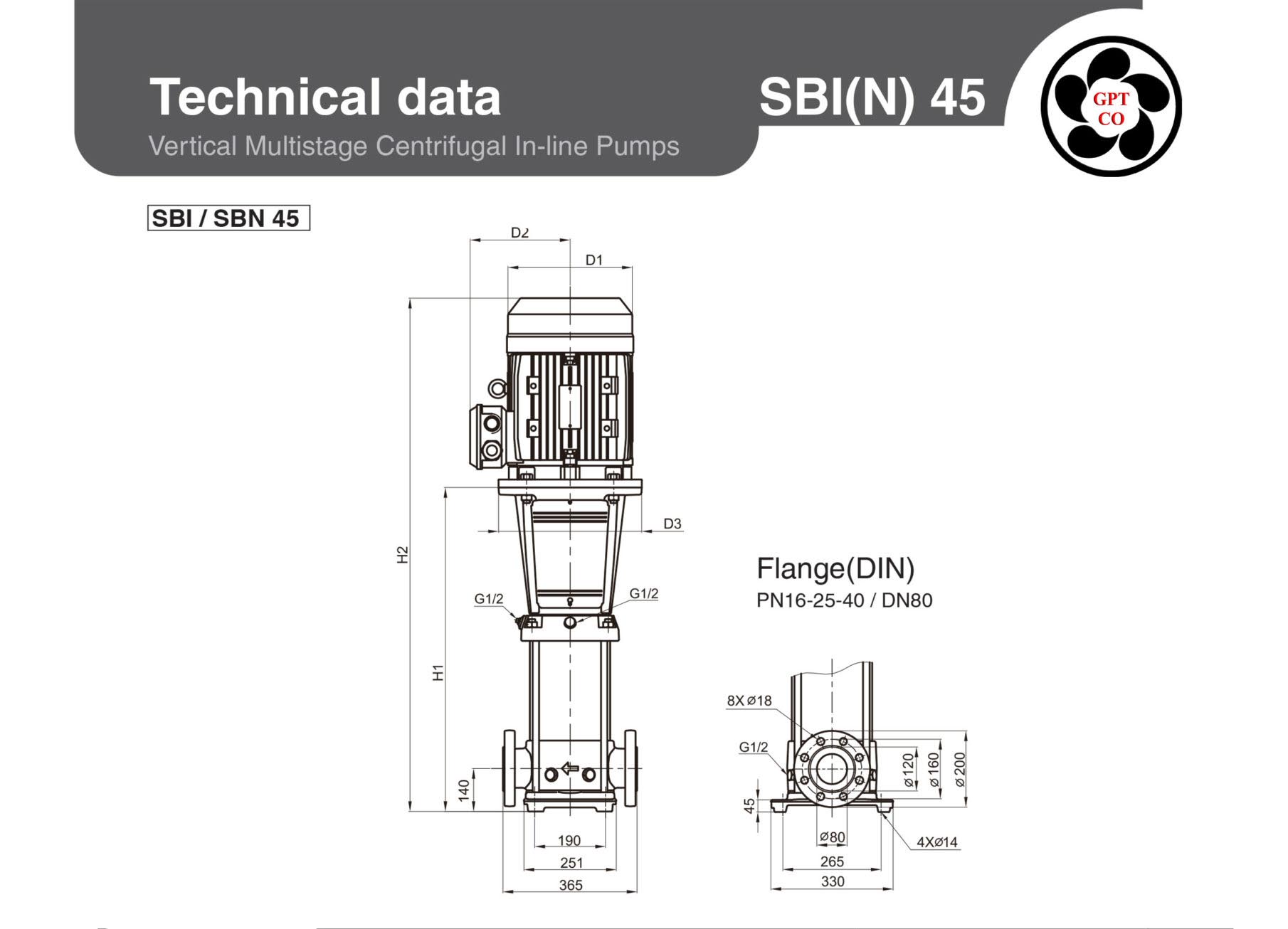

60Hz

Motor P2

Nominal current (A)

Dimension [mm]

Net weight [kg]

Three phase

DIN flange

Port Size

D1

D2

DIN flange

Pump type

[KW]

[HP]

460V

H1

H2

DNA

DNM

SBN 45-7 45 60 75.9 1149 1839 3″ 3″ 446 325 424.8



Applications:

WATER SUPPLY AND PRESSURE BOOSTING

  • Pressure boosting in buildings, hotels, residential complexes
  • Pressure booster stations, supply of water networks
  • Pressure boosting for industrial water supply

IRRIGATION AND AGRICULTURE

  • Greenhouses
  • Sprinkler irrigation
  • Field irrigation (flooding)

LIGHT INDUSTRY

  • Washing and cleaning systems
  • Car washing facilities
  • Fire fighting systems
  • Process water systems
  • Machine tools (cooling lubricants)

WATER TREATMENT

  • Water softeners and de-mineralization Reverse Osmosis systems
  • Distillation systems
  • Filtration
  • Ultra-filtration systems

HEATING, VENTILATION AND AIR-CONDITIONING

  • Boilers
  • Induction heating
  • Heat exchangers
  • Refrigerators
  • Cooling towers and systems
  • Temperature control systems



Motor:

• Squirrel cage in short circuit, aluminum casing up to 22 kW, totally enclosed, fan-cooled, 2- pole standard motor.
• Standard supply Stairs motors up to 15 kW. Other motor brands for higher powers.
• Electrical data
-Enclosure class: IPSS
-Insulation class: F
• The motors have efficiency values that fall within the range normally referred to as high efficiency.
• Ambient temperature: Max. +122°F



Pumped Liquids

SB (I, N) pumps can handle a wide variety of liquids, each with its own characteristic.

SB(I):

  • Non-corrosive liquids
  • For fluid transfer, circulation and pressure boosting of cold or hot clean water.







Additional information

Dimensions 14.5 × 13 × 38 in
AC/DC Pumps

AC

Category AC Pumps

Vertical Multistage Pumps

Brand

Gol Pumps

AC Voltage

440-480 volts, 460 volts

Horsepower

60

Phase

Three Phase

Suction Port

3"

Discharge Port

3"
