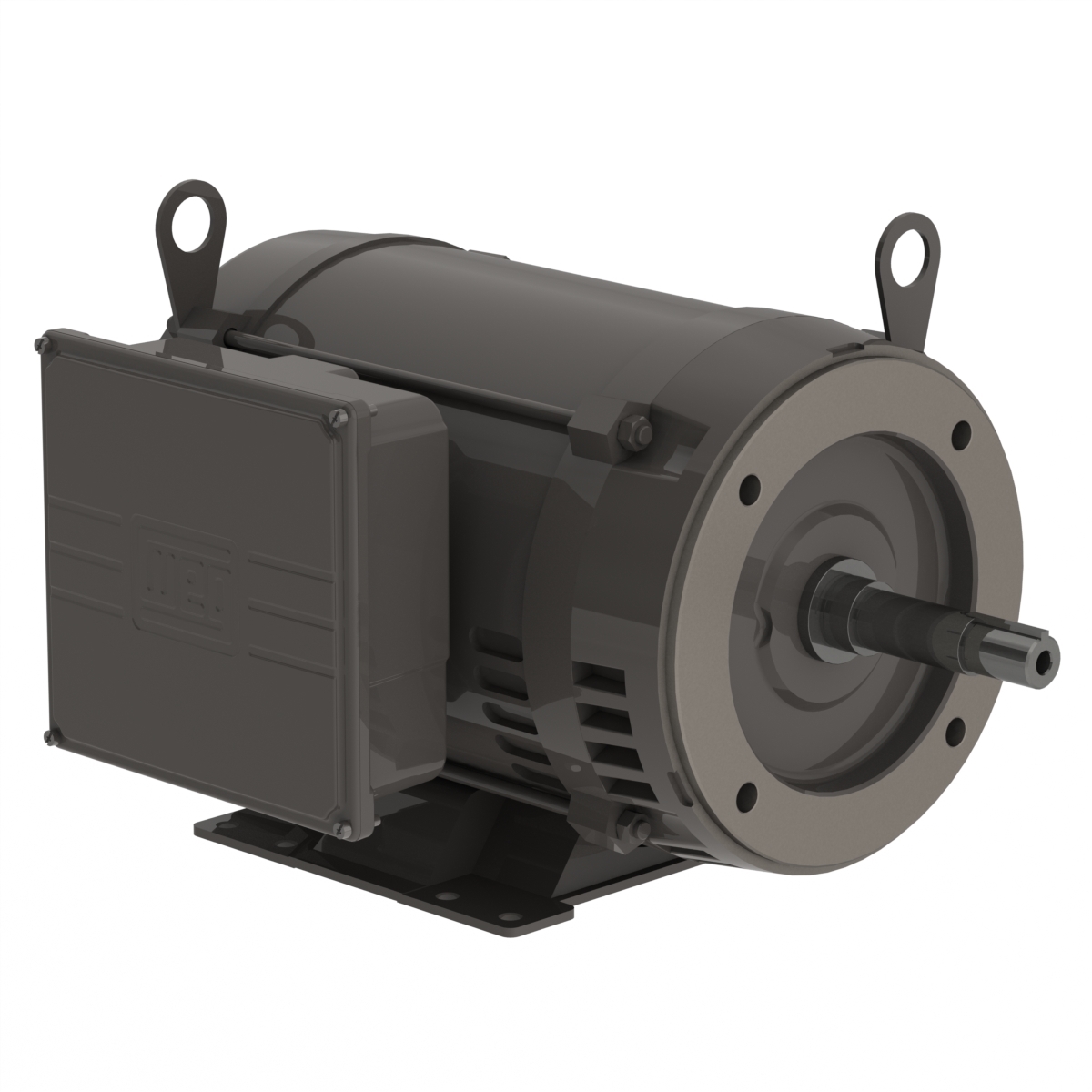

WEG Close Coupled Motor – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00736OS1C213JP

5/5

WEG Close Coupled Motor – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00736OS1C213JP

SKU 5160523 Categories , , Tags , ,

Additional information

Brand

WEG

AC Voltage

208-220 volts, 230 volts

Horsepower

7.5

Phase

Single Phase

Material

Rolled Steel

RPM

3600

Explosion Proof

No

$1,214.99

The Close Coupled motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230
Number of poles 2
Degree of protection IP21
Synchronous speed 3600 rpm
Output rating 7.5 HP
Flange C
Mounting F-1
Terminal box Left position
Enclosure IC01 – ODP

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Data

Technical Data

Brand WEG
Frame 213/5JM
Output 7.5 HP
Number of Poles 2
Frequency 60 Hz
Rated Speed 3510 rpm
Slip (%) 2.50
Rated Voltage (V) 208-230
Rated Current (A) 32.0-30.1
L. R. Amperes (A) 256-241
LRC 8.0x (Code H)
No load Current (A) 0.0-8.0
Rated Torque (ft.lb) 11.2
Locked Rotor Torque (%) 220
Breakdown Torque (%) 229
Locked Rotor Time 10s (cold) 6s (hot)
Moment of Inertia (J) 0.4271 sq.ft.lb
Insulation Class F
Service Factor 1.15
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 – ODP
Mounting F-1
Rotation CCW
Protection Degree IP21
Approx. Weight (lb) 121

Efficiency

25% 50% 75% 100%
0.0 75.5 84.8 85.5

Power Factor

25% 50% 75% 100%
0.0 0.83 0.90 0.93

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main Terminal Box Hole NPT 1″
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 7022 207A (ISO 12944 – C3)
Grounding Lugs Single
Fan Cover Material Without
Tropicalized Painting Without
Bearing cap Yes
Drip Cover Without
Overload Protector (phenolic) Without
Screw Cap Carbon Steel SAE 1010/20

Dimensions
