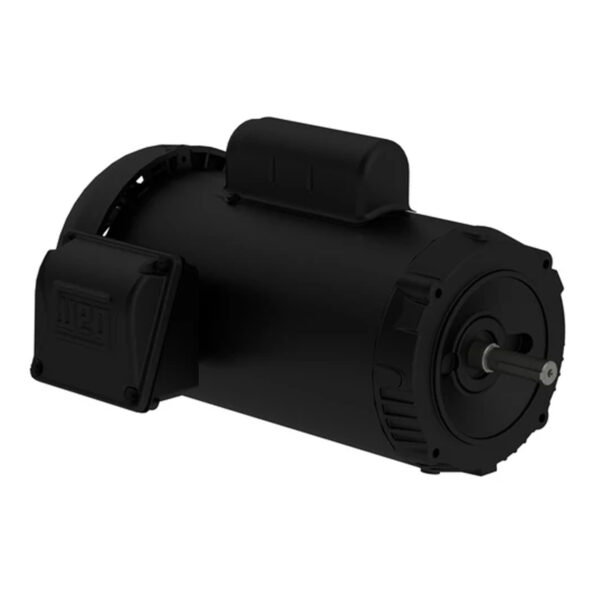

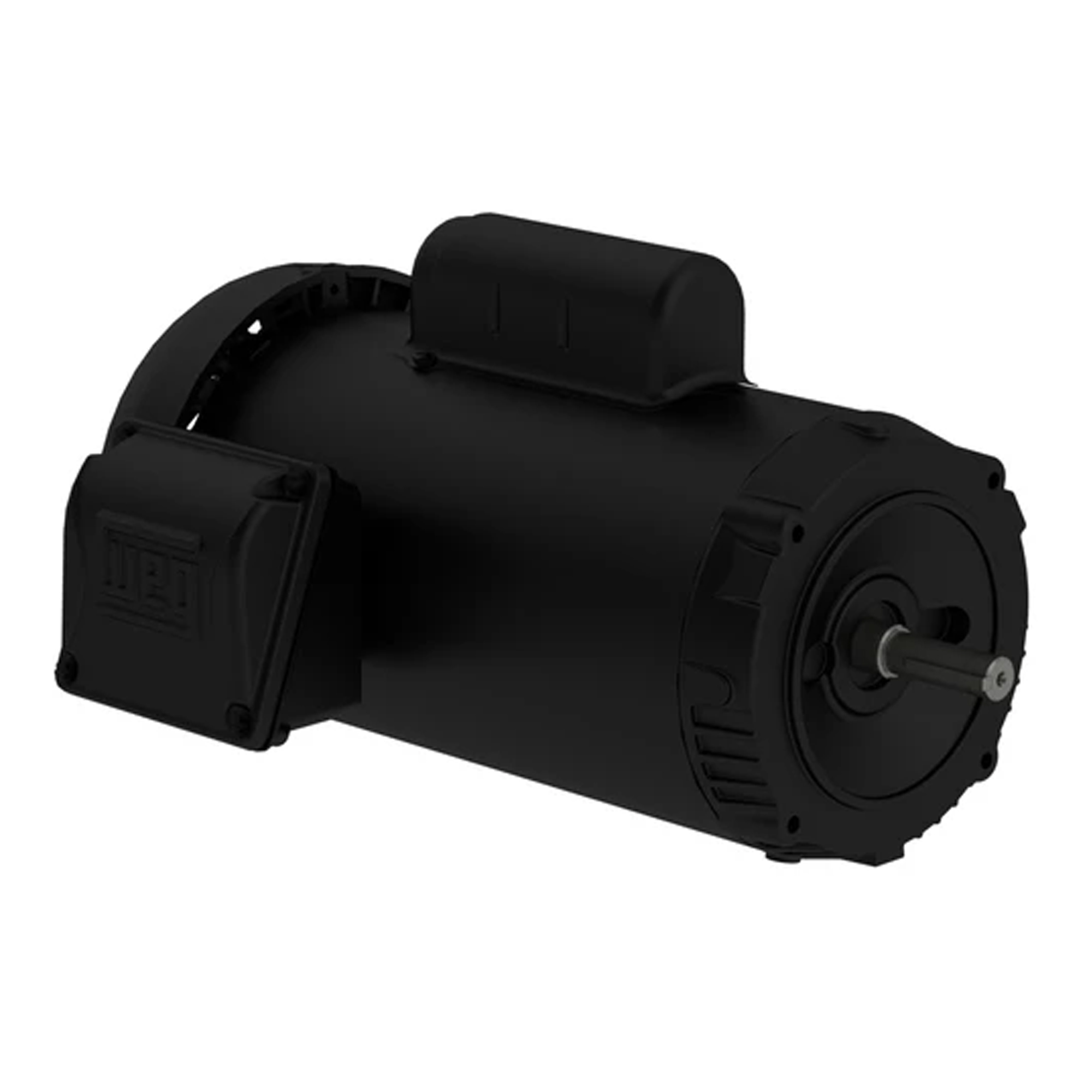

WEG Rolled Steel 1HP, 115/208-230V – 1Ph, 1800RPM, IC411 – TEFC – Footless, Model 00118ES1B56CFL-S
5/5
WEG Rolled Steel 1HP, 115/208-230V – 1Ph, 1800RPM, IC411 – TEFC – Footless, Model 00118ES1B56CFL-S
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 208-220 volts, 230 volts, 460 volts |
| Horsepower | 1 |
| Phase | Three Phase |
| Material | Rolled Steel |
| RPM | 1800 |
| Explosion Proof | No |
Unit Price
$426.99
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 1 HP |
| Mounting | Footless |
| Flange | C |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
For all products over 120 lbs, a $250 Residential Delivery & Lift Gate Fee applies to residential addresses.
If your product is over 120 lbs and the shipping address is residential, we will contact you after the order is placed to collect the required fee before shipping.
Description
Technical Data
Technical Data
| Frame | 56C |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 115/208-230 V |
| Rated current | 13.6/7.52-6.80 A |
| L. R. Amperes | 91.1/50.4-45.6 A |
| LRC | 6.7x(Code M) |
| No load current | 9.60/4.14-4.80 A |
| Rated torque | 3.01 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 270 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 0.1037 sq.ft.lb |
| Design | L |
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 54.0 dB(A) |
| Approx. weight³ | 35.7 lb |
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 208-220 volts, 230 volts, 460 volts |
| Horsepower | 1 |
| Phase | Three Phase |
| Material | Rolled Steel |
| RPM | 1800 |
| Explosion Proof | No |
