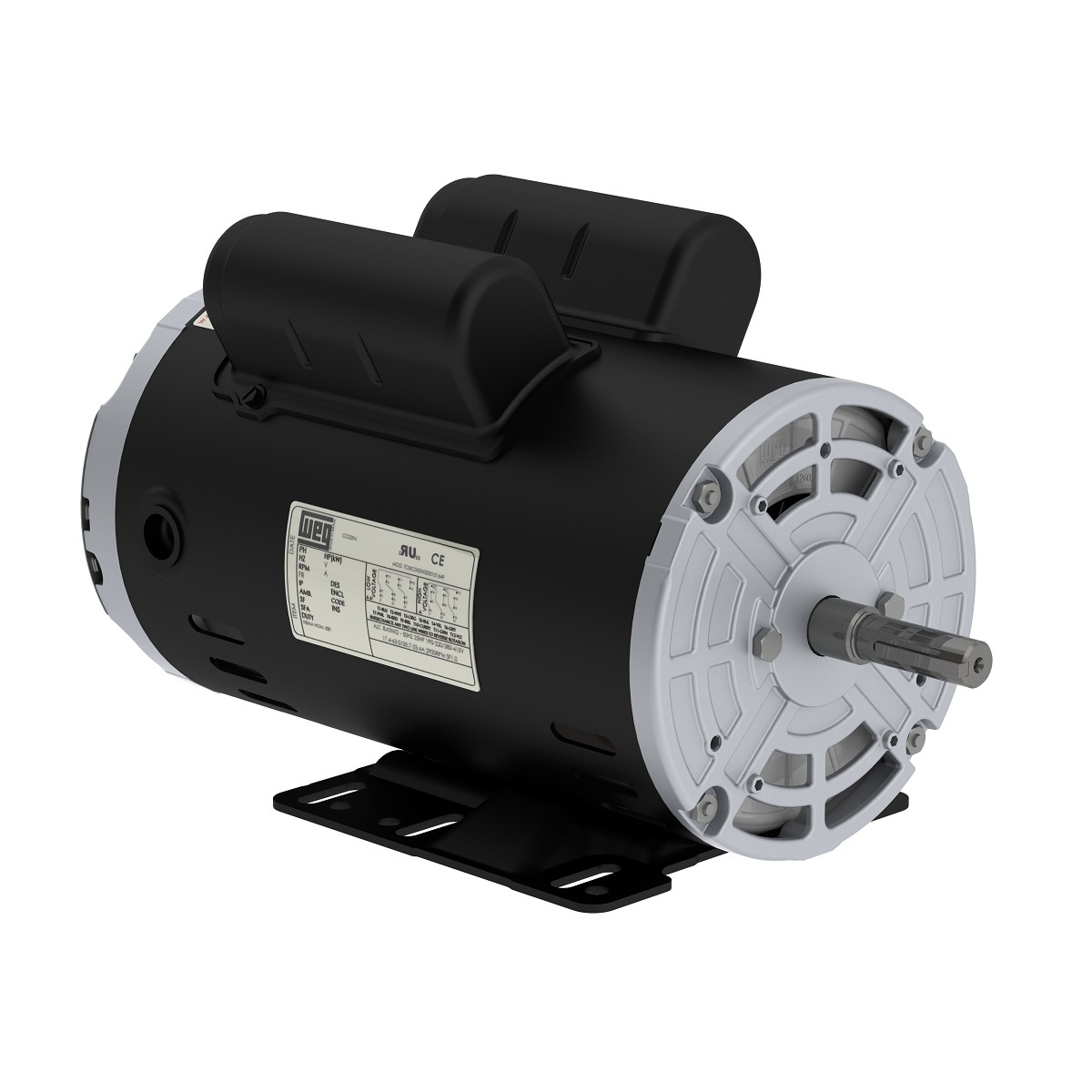

WEG Rolled Steel Motor – 2HP, 115/230V – 1Ph, 60 Hz, 1730RPM, ODP, Foot-mounted, Model 00218OT1B56-S
5/5
WEG Rolled Steel Motor – 2HP, 115/230V – 1Ph, 60 Hz, 1730RPM, ODP, Foot-mounted, Model 00218OT1B56-S
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 110-115 volts, 208-220 volts, 230 volts |
| Horsepower | 2 |
| Phase | Single Phase |
| Material | Rolled Steel |
| RPM | 1800 |
| Explosion Proof | No |
$485.99
The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 2 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Without |
| Enclosure | IC01 – ODP |
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Description
Technical Data
Technical Data
| Brand | WEG |
|---|---|
| Frame | 56H |
| Output | 2 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1730 rpm |
| Slip (%) | 3.89 |
| Rated Voltage (V) | 115/208-230 |
| Rated Current (A) | 17.7/9.5-8.87 |
| L. R. Amperes (A) | 115/61.7-57.7 |
| LRC | 6.5x (Code H) |
| No load Current (A) | 6.2/2.67-3.1 |
| Rated Torque (ft.lb) | 6.07 |
| Locked Rotor Torque (%) | 290 |
| Breakdown Torque (%) | 225 |
| Locked Rotor Time | 32s (cold) 18s (hot) |
| Moment of Inertia (J) | 0.1614 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 52.0 dB(A) |
| Approx. Weight (lb) | 49.6 |
Efficiency
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 82.2 | 83.0 | 84.0 | 84.5 |
Power Factor
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.49 | 0.75 | 0.83 | 0.87 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main Terminal Box Hole | NPT 1/2″ |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover Material | Without |
| Tropicalized Painting | Without |
| Bearing Cap | No |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
Dimensions
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 110-115 volts, 208-220 volts, 230 volts |
| Horsepower | 2 |
| Phase | Single Phase |
| Material | Rolled Steel |
| RPM | 1800 |
| Explosion Proof | No |
