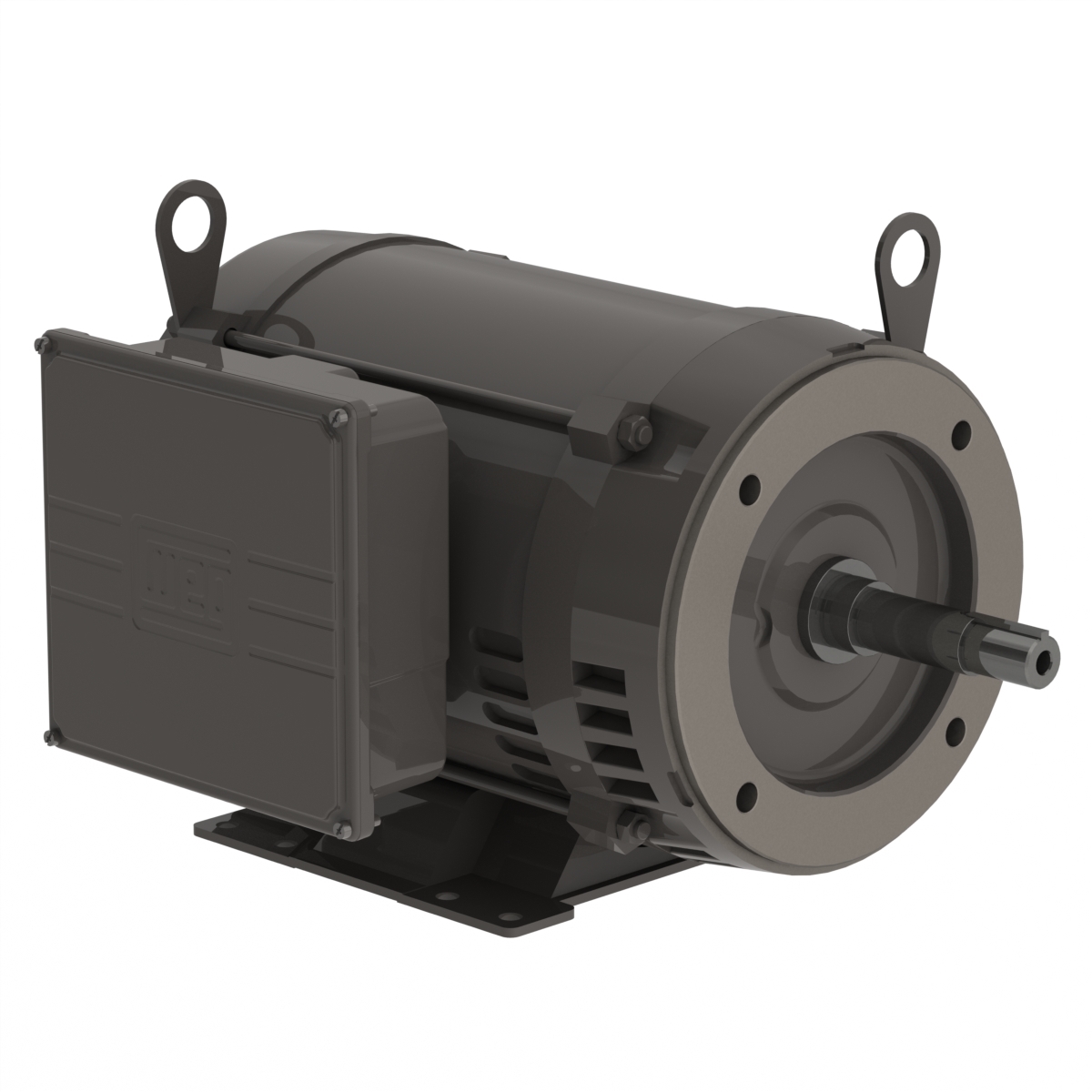

WEG Close Coupled Motor – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00736OS1C213JM
5/5
WEG Close Coupled Motor – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00736OS1C213JM
Free Shipping
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 208-220 volts, 230 volts |
| Horsepower | 7.5 |
| Phase | Single Phase |
| Material | Rolled Steel |
| RPM | 3600 |
| Explosion Proof | No |
$1,214.99
The Close Coupled motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
Product Features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208-230 |
| Number of poles | 2 |
| Degree of protection | IP21 |
| Synchronous speed | 3600 rpm |
| Output rating | 7.5 HP |
| Flange | C |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC01 – ODP |
*If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply
Description
Technical Data
Technical Data
| Brand | WEG |
|---|---|
| Frame | 213/5JM |
| Output | 7.5 HP |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3510 rpm |
| Slip (%) | 2.50 |
| Rated Voltage (V) | 208-230 |
| Rated Current (A) | 32.0-30.1 |
| L. R. Amperes (A) | 256-241 |
| LRC | 8.0x (Code H) |
| No load Current (A) | 0.0-8.0 |
| Rated Torque (ft.lb) | 11.2 |
| Locked Rotor Torque (%) | 220 |
| Breakdown Torque (%) | 229 |
| Locked Rotor Time | 10s (cold) 6s (hot) |
| Moment of Inertia (J) | 0.4271 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | CCW |
| Protection Degree | IP21 |
| Approx. Weight (lb) | 121 |
Efficiency
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.0 | 75.5 | 84.8 | 85.5 |
Power Factor
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.0 | 0.83 | 0.90 | 0.93 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main Terminal Box Hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 7022 207A (ISO 12944 – C3) |
| Grounding Lugs | Single |
| Fan Cover Material | Without |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
Dimensions
Additional information
| Brand | WEG |
|---|---|
| AC Voltage | 208-220 volts, 230 volts |
| Horsepower | 7.5 |
| Phase | Single Phase |
| Material | Rolled Steel |
| RPM | 3600 |
| Explosion Proof | No |
