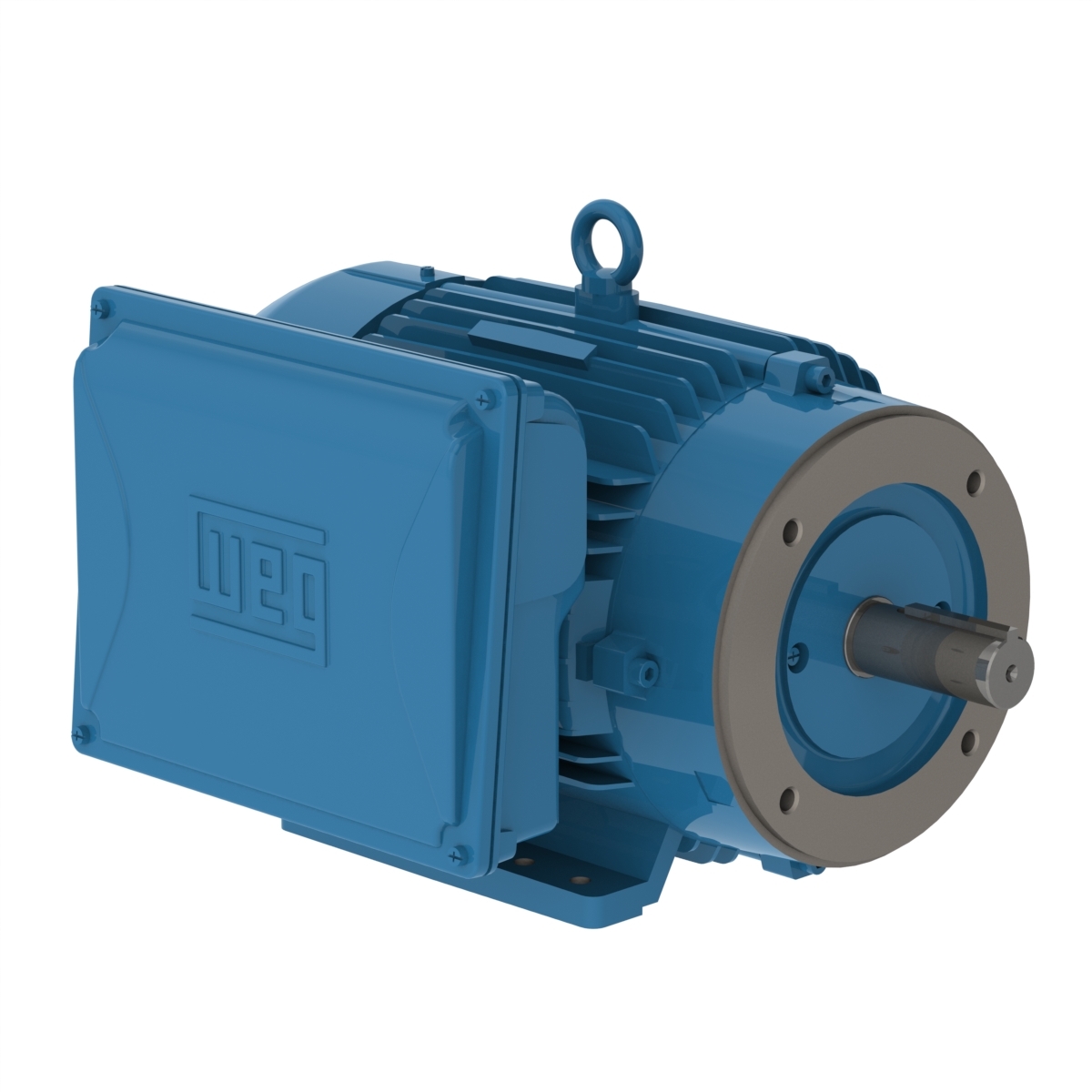

WEG Motor W22 – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, TEFC, Foot-mounted, Model 00736ES1E213TC-W22G

5/5

WEG Motor W22 – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, TEFC, Foot-mounted, Model 00736ES1E213TC-W22G

SKU 5160300 Categories , , Tags , ,

Additional information

Brand

WEG

AC Voltage

208-220 volts, 230 volts

Horsepower

7.5

Phase

Single Phase

Material

Aluminum

RPM

3600

Explosion Proof

No

$1,238.99

High starting torque.
Suitable for domestic and rural power supply conditions.
Adaptable design suitable for a variety of applications and needs.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Flange C
Mounting F-1
Terminal box Left position
Enclosure IC411 – TEFC

  *If the item is over 100 lbs, forklift is required at commercial delivery location only, otherwise we will charge $100 Liftgate service fee . For residential addresses additional delivery fees may apply

Add to Cart

Description

Technical Data

V-Ring Seal

V-Ring Seal to avoid the liquids and dust inlet in the motor.

Capacitor

With runner capacitor, runner and permanent capacitor or permanent capacitor.

Cooling System

• The cooling system (fan, non-drive end shield and fan cover) is designed to minimize noise level and improve thermal efficiency.
• Steel plate fan cover provides high mechanical strength, corrosion resistance and extended lifetime.

Aluminum Frame

• FC-200 (EN GJL 200) aluminum frames meeting impact level IK08 (5J) ensuring superior mechanical strength for the most demanding applications.
• Solid motor feet providing excellent rigidity, allowing easier alignment and installation.

Centrifugal Switch

The starting system of W22 single phase motors was completely redesigned to improve functionality, thus increasing system reliability and lifespan.

Technical Data

Brand WEG
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated Speed 3510 rpm
Slip (%) 2.50
Rated Voltage (V) 208-230
Rated Current (A) 30.5-28.2
L. R. Amperes (A) 220-203
LRC (A) 7.2x (Code G)
No load Current (A) 5.69-6.60
Rated Torque (ft.lb) 3.00
Locked Rotor Torque (%) 280
Breakdown Torque (%) 290
Locked Rotor Time 12s (cold) 7s (hot)
Moment of Inertia (J) 0.5550 sq.ft.lb
Insulation Class F
Service Factor 1.15
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 – TEFC
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 72.0 dB(A)
Approx. Weight (lb) 168

Efficiency

25% 50% 75% 100%
76.8 78.5 84.0 85.5

Power Factor

25% 50% 75% 100%
0.74 0.99 0.99 0.99

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1″
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207N (ISO 12944 – C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Bearing cap Yes
Drip Cover Without
Overload Protector (phenolic) Without
Screw Cap Carbon Steel SAE 1010/20
Fan material Plastic
